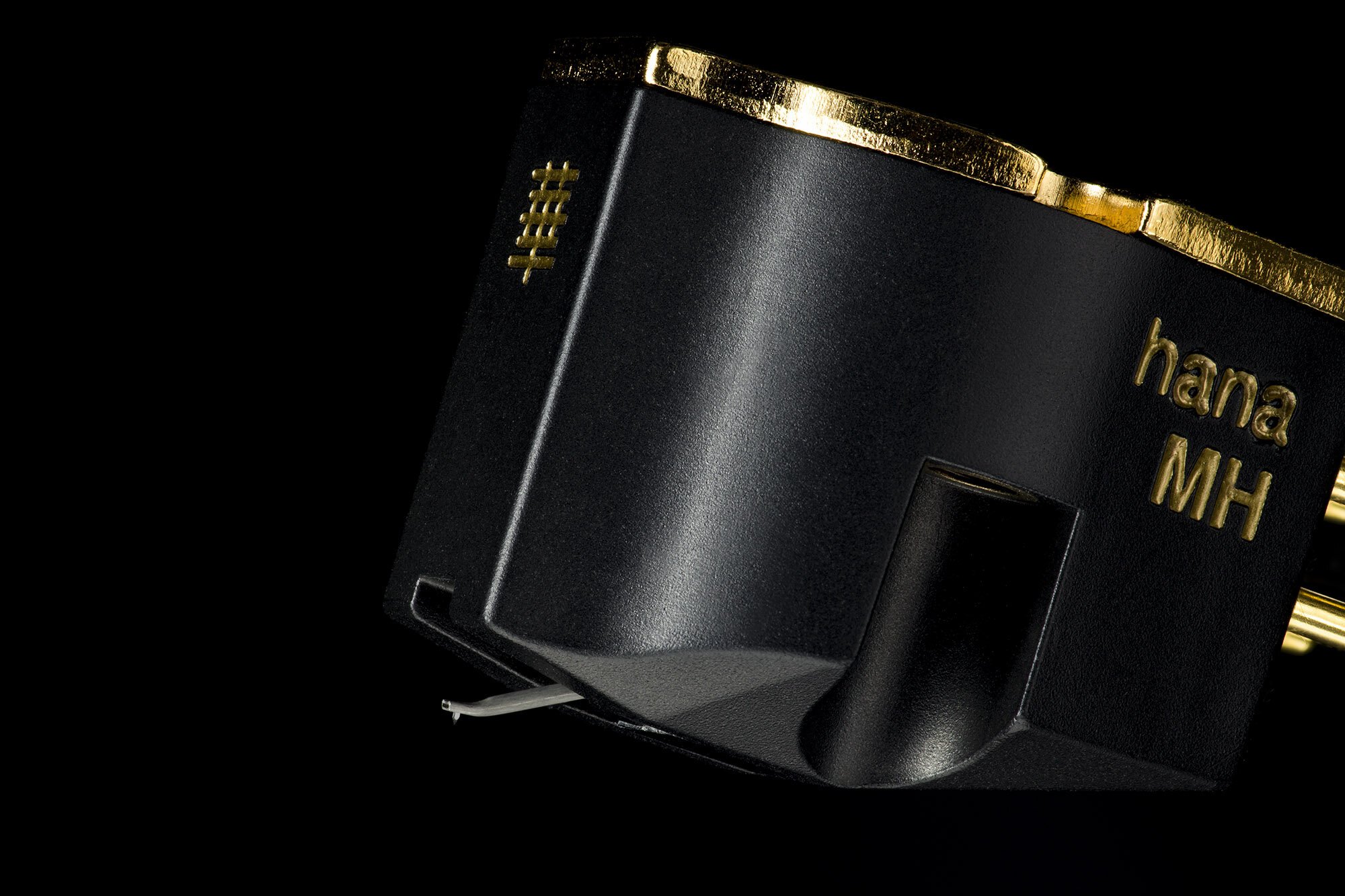

HANA MH

HANA MH

  • RRP £1049

  • High-output Moving Coil design, making it compatible with a Moving Magnet phono stage

  • Nude Diamond Shibata micro-line profile captures the smallest details with ease

  • Pure Iron/Cryo. magnet treatment, high-purity copper coil wire

  • Cross-shaped armature built-in POM (Delrin™) resin

The Hana MH cartridge boasts several advanced features compared to the E and S Series high-output Moving Coil cartridges, elevating sound fidelity and musical enjoyment while maintaining superb sound quality relative to its higher price point.

This cartridge is designed for optimal performance with Moving Magnet (MM) phono stages. The ‘Micro-Line’ stylus design, which mimics the shape of the cutting head used during metal master LPs, fits precisely into the vinyl groove to capture even the smallest details, resulting in better frequency reproduction and reduced distortion.

The bodies of the Hana M Series cartridges are constructed from black polyoxymethylene (POM), a hard, rigid, low-resonance thermoplastic manufactured by DuPont under the trade name ‘Delrin.’ Additionally, a gold-plated copper resonance plate integrated into the cartridge body further minimises distortion caused by vibrations.

HANA MH SPECIFICATIONS


MODEL

Hana MH

STYLUS

Nude Diamond Shibata

CANTILEVER

Aluminium

Magnetic circuitry

Pure Iron/Cryo. Treatment

Coil Wire

High Purity Copper

Cartridge housing

POM (Delrin™)

OUTPUT LEVEL

2mV/1kHz

OUTPUT BALANCE

<1dB/1kHz

VERTICAL TRACKING FORCE

2 gr.

Trackability

70μm/2gr

Channel Separation

30dB/1kHz

Frequency Response

12~45,000Hz

IMPEDANCE

130Ω/1kHz

Suggested Load Impedance

47Ω

Cartridge Weight

9 gr.

BODY COLOUR

Black

WARRANTY

2 years
