M3/h STEREO D/A
BRICASTI DESIGN - HISTORY - NEWS - REVIEWS - TECHNOLOGIES - PRODUCTS - CLASSIC SERIES - SOURCES - PREAMPLIFIERS - AMPLIFIERS - PLATINUM SERIES
M3 STEREO D/A, CLASSIC OR ARGENTO FINISH: £7350
NETWORK CARD: £1350
I2S CARD: £550
M3H, HEADPHONE OUTPUT MODULE: £550*
*When ordered from new.
High-precision audio with Delta-Sigma DAC and dedicated 1-bit DSD conversion.
Flexible Design: Options for streaming and headphone amp integration.
High-Quality Build: Durable aluminium chassis with a minimalist design.
True Analogue Volume Control: Offers high-precision analogue gain control with a 90dB range, preserving resolution across all settings.
The M3 offers an incredible array of performance at a more affordable price. Highlights include two fully differential conversion channels, separate conversion for PCM and native DSD, and a balanced analogue-level control circuit, making it suitable for all applications. In addition, the M3 incorporates the latest Bricasti Design high-performance MDx processor.
POWERFUL
ARCHITECTURE

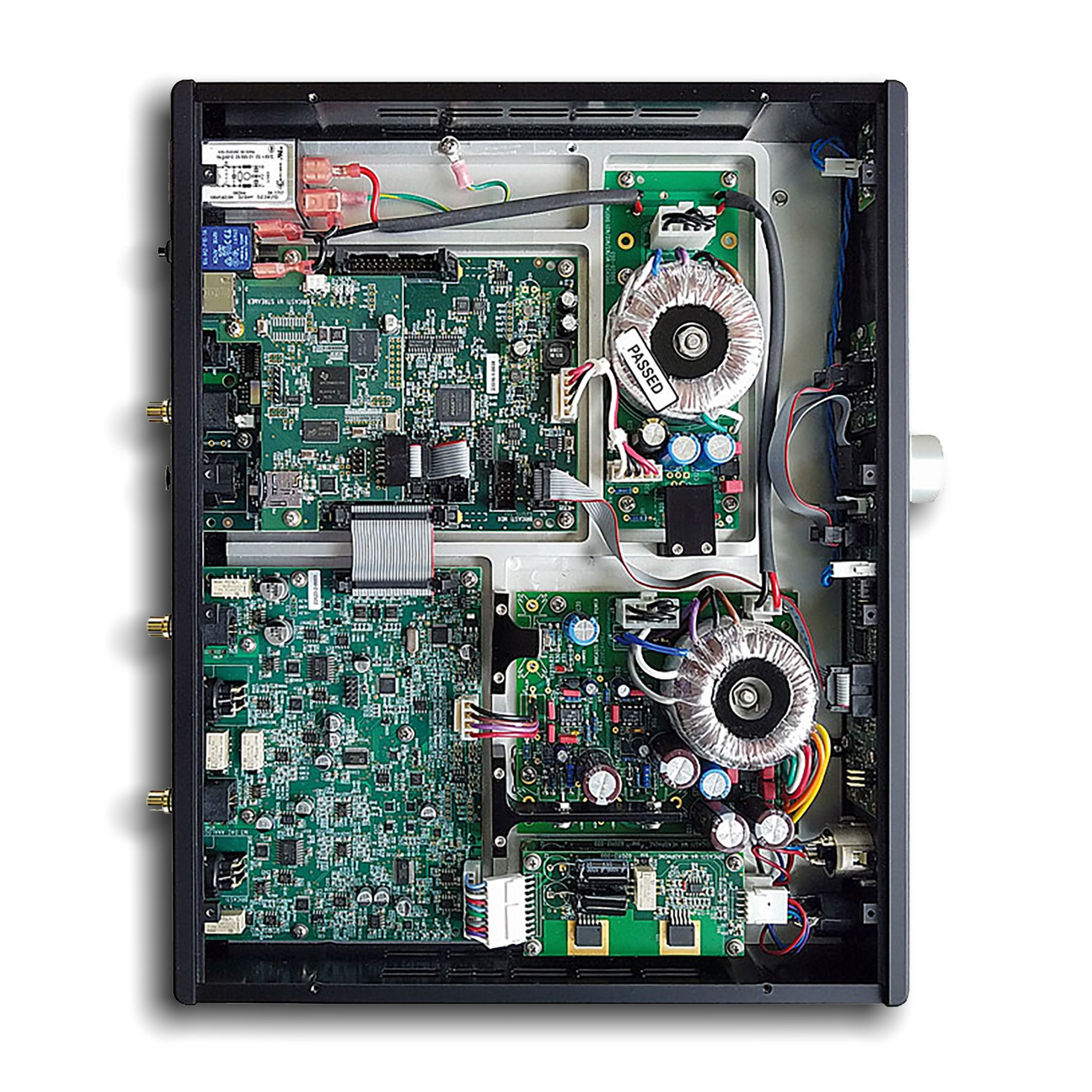

The M3 utilises two independent linear power supplies for analogue and digital processing to ensure low noise and superior isolation. A newly designed chassis made from robust CNC-milled aluminium in sections ensures superior thermal characteristics, excellent vibrational damping and shielding from RF.
SOUND IS
AN ART AND A SCIENCE
The M3’s digital design employs precision DDS clocking that lowers jitter to extremely low levels, ensuring a pure digital signal path without using sample rate converters, combined with superior digital filter design and Native DSD conversion yields a state-of-the-art digital audio path. The M3’s high-speed low distortion analogue path features a bypassable preamp class analogue level control, allowing the M3 to drive power amps directly with no bit loss for optimal analogue performance.
M3H FULLY
DIFFERENTIAL HEADPHONE OPTION
The M3H was designed for the discerning headphone aficionado in mind. Featuring independent analog amplifiers for plus and minus on the XLR output to create a fully balanced headphone system with exceptional performance.
FEATURES
PROCESSOR
MDX OS
The Bricasti MDx digital processor represents a significant technological advancement, built on a proprietary platform that has undergone years of development. This processor transforms and refines our entire line of digital-to-analogue converters (D/A converters). It offers exceptional accuracy in timing and improves incoming master clocking, enhancing network performance for superior sound quality. Additionally, the MDx introduces support for DSD256 over USB. With the MDx, audio quality is elevated to a new level of precision and excellence.
PERFORMANCE
I2S: RAW
The M19 Reference SACD/CD Transport features our proprietary I2S digital output, designed exclusively for Bricasti DACs. This direct interface ensures seamless integration, elevating performance with improved clarity, enhanced layering, and a broader sound spectrum. The I2S input is now available as an option on all new Bricasti DACs and can be added as an upgrade for existing customers.
EFFORTLESS
STREAMING
The Bricasti Network Player Card ensures pristine data transmission over long distances, eliminating signal loss or degradation. Enabling your server to be placed anywhere on the network creates a clutter-free listening environment without compromising performance. It delivers exceptional streaming and high-fidelity audio playback by seamlessly integrating with Bricasti DACs and compatible audio software like Roon, JRiver, Audirvana, and JPlay.
M3, M3/h TECHNICAL SPECIFICATIONS
Digital Inputs:
XLR: AES/EBU 24-bit Single Wire, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2, Ethernet (optional), I2S (optional)
Sample Rates AES, SPDIF, AUX:
44.1 kHz, to, 192khz, DSD 64fs as DoP
Sample Rates USB:
44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native and DoP
Sample Rates ETHERNET:
44.1 kHz, to, 384kHz, DSD 64fs, 128Fs Native
JITTER:
8 psec @ 48k / 6psec @ 96k
ON BALANCED OUTPUTS
Balanced Analog Outputs:
XLR balanced (pin 2 hot)
Impedance:
40 ohm
Output LEVEL:
@ 0 db front panel +14.3 dbm 4 db RMS ( bypass mode)
THD+N @ 1k:
.0008% @ 0dbfs / .0004% @-30dbfs
D/A Conversion:
PCM 24 bit delta-sigma 8x oversampling, NDSD pure 1-bit conversion for DSD
Frequency Response @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
Dynamic Range:
>120dB A-Weighted
ON UNBALANCED OUTPUTS
UNBalanced Analog Outputs:
RCA
Impedance:
40 ohm
Output LEVEL:
@ 0 db front panel = +4db 2V rms
THD+N @ 1k:
.0008% @ 0dbfs / .0004% @-30dbfs
D/A Conversion:
PCM 24 bit delta-sigma 8x oversampling, NDSD pure 1-bit conversion for DSD
Frequency Response @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
Dynamic Range:
>120dB A-Weighted
(OPTIONAL) M3H HEADPHONE DRIVER
Output:
4 pin XLR balanced or TRS stereo
OUTPUT Impedance:
< 500 ohm (20Hz-20kHz)
Max. Output <1% THD:
8.8V or >100mW/600ohm
A-Weighted S/N:
116.3db
THD:
0.00025%
GENERAL SPECIFICATIONS
General Specifications:
EMC: Complies: EN 55103-1, EN 55103-2, FCC part 15 and Class B
rohs:
Complies with: EU RoHS Directive 2002/95/EC
Safety:
Certified to: IEC 60065, EN 55103-2
Operating Temperature:
32 F to 105 F (0 C to 40 C)
Storage Temperature:
-22 f to 167 F (-30 C to 70 C)
Finish:
Anodised aluminum
DIMENSIONS:
14” x 11.25“ x 2.5”
35.56, 28.59, 6.35 cm
Shipping Dimensions:
20”x 14”x 5”
50.80, 35.56, 12.70 cm
WEIGHT:
10 lbs, 4,54 kg.
Shipping Weight:
15 lbs, 6.8 kg.
MAINS voltage:
-100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
TRIGGER OUT:
TRS connector for 5V external trigger on ring.
Power consumption:
15 Watts
warranty PARTS AND LABOUR:
2 years
