M1 SERIES II STEREO D/A
BRICASTI DESIGN - HISTORY - NEWS - REVIEWS - TECHNOLOGIES - PRODUCTS - CLASSIC SERIES - SOURCES - PREAMPLIFIERS - AMPLIFIERS - PLATINUM SERIES
M1 SERIES II STEREO D/A, CLASSIC OR ARGENTO FINISH: £15,000
PLATINUM FINISH: £18,000
NETWORK CARD: £1350
I2S CARD: £550
Advanced Delta-Sigma DAC: Refined Delta-Sigma conversion for exceptional detail and clarity.
Improved Power Supply: Enhanced power regulation minimises noise for superior sound quality.
Fully Balanced Outputs: Provides balanced XLR and unbalanced RCA outputs for versatile connectivity.
Upgradable Design: Modular construction allows for optional upgrades, including network streaming.
High-Quality Build: Premium chassis design for durability and aesthetic appeal, custom Stillpoints feet as standard.

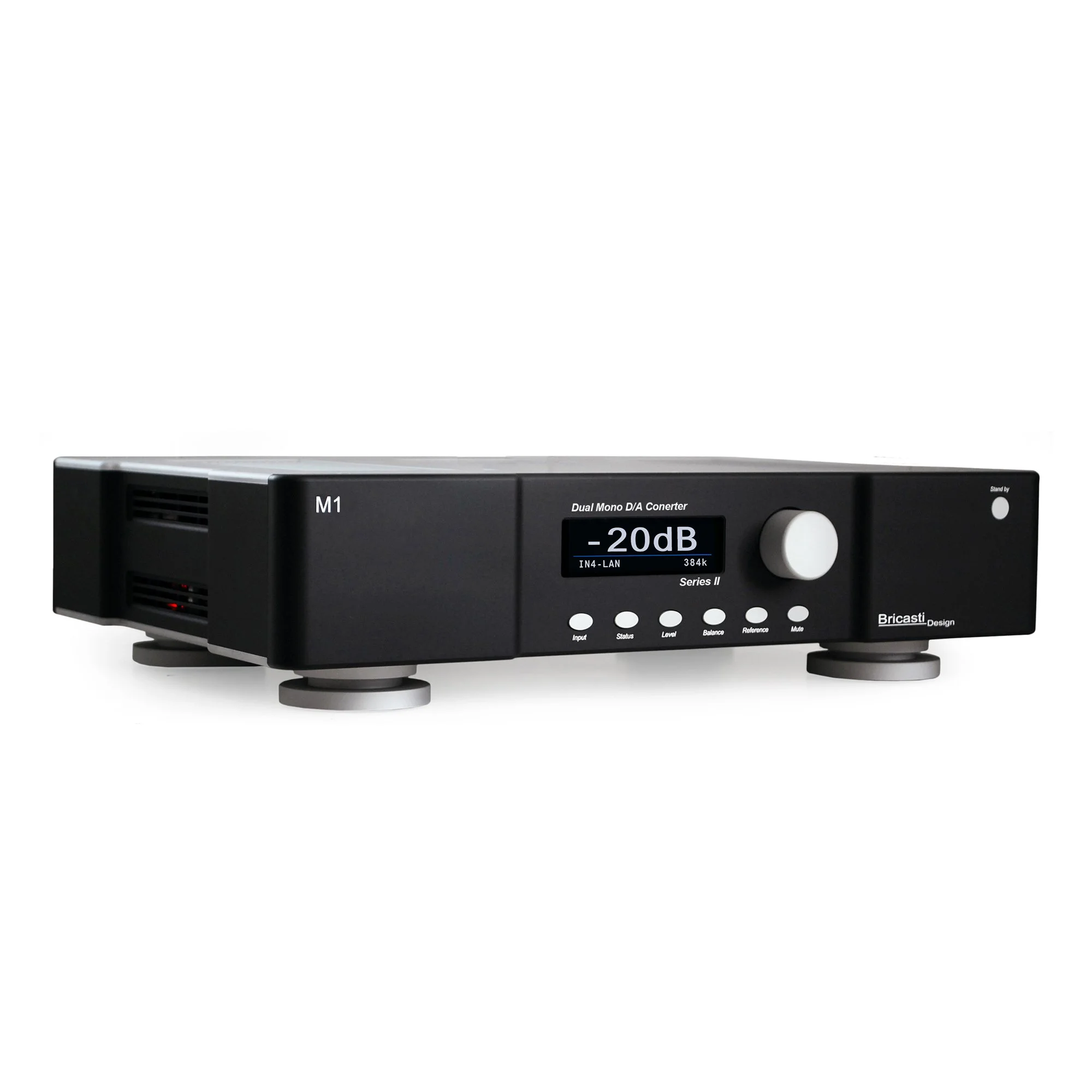

The M1S2 (Series II) brings a fresh look and upgraded features to the M1 series, succeeding the legacy M1SE model. This new design reflects Bricasti Design’s extensive expertise in high-precision D/A engineering, optimised for audio purists. Focused on simplicity and performance, the M1S2 includes the latest MDx processor, high-current twin linear power supplies with larger performance capacitors, and a robust, handcrafted chassis milled from solid aluminium. Standing taller than its predecessor, the M1S2 now has upgraded Stillpoint feet as standard, setting new performance milestones for the series.
EXTREME
PERFORMANCE
A high-performance linear power architecture delivers a clean signal with exceptionally low noise and ample headroom. With point-to-point wiring and Stillpoint isolation integrated directly into the chassis, your music will experience enhanced depth, detail, and dimensionality. Improved spatial cues and separation provide a truly immersive listening experience.
PURITY
OF SIGNAL
The M1S2 utilises Bricasti Design's latest proprietary MDx digital platform, clocking algorithms and filter technology for exceptional performance without the use of SRC's so signals stay native. The digital section is coupled with a pristine analogue path with the goal of delivering the most faithful possible representation of tonality, precision and dimension.
MASTERFULLY
CONNECTED
The M1S2 digital input selection is well-appointed to fit most systems. It also features a fully differential design, which creates a less resistant output signal path, ideal when matched with a fully differential M20 preamplifier and the Bricasti range of power amplifiers.
FEATURES
PROCESSOR
MDX OS
The Bricasti MDx digital processor represents a significant technological advancement, built on a proprietary platform that has undergone years of development. This processor transforms and refines our entire line of digital-to-analogue converters (D/A converters). It offers exceptional accuracy in timing and improves incoming master clocking, enhancing network performance for superior sound quality. Additionally, the MDx introduces support for DSD256 over USB. With the MDx, audio quality is elevated to a new level of precision and excellence.
PERFORMANCE
I2S: RAW
The M19 Reference SACD/CD Transport features our proprietary I2S digital output, designed exclusively for Bricasti DACs. This direct interface ensures seamless integration, elevating performance with improved clarity, enhanced layering, and a broader sound spectrum. The I2S input is now available as an option on all new Bricasti DACs and can be added as an upgrade for existing customers.
EFFORTLESS
STREAMING
The Bricasti Network Player Card ensures pristine data transmission over long distances, eliminating signal loss or degradation. Enabling your server to be placed anywhere on the network creates a clutter-free listening environment without compromising performance. It delivers exceptional streaming and high-fidelity audio playback by seamlessly integrating with Bricasti DACs and compatible audio software like Roon, JRiver, Audirvana, and JPlay.
PLATINUM
BEAUTY
In addition to the standard Classic (Black) and Argento (Silver) finishes, an optional authentic Platinum finish is available for the M1S2. This finish involves anodizing the base aluminium metal, starting with a layer of copper, followed by nickel, and finally applying a 40-micron coating of pure Platinum in-house. The stunning mirror finish enhances the aesthetics and increases the chassis's mass with precious metals. This added weight improves performance, offering better tonality and resolution due to its effective RF rejection.
M1S2 TECHNICAL SPECIFICATIONS
Digital Inputs:
XLR: AES/EBU 24-bit Single Wire, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2, Ethernet (optional), I2S (optional)
Sample Rates AES, SPDIF, AUX:
44.1 kHz, to, 192khz, DSD 64fs as DoP
Sample Rates USB:
44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native and DoP
Sample Rates ETHERNET:
44.1 kHz, to, 384kHz, DSD 64fs, 128Fs Native and DoP
JITTER:
8 psec @ 48k / 6psec @ 96k
ON BALANCED OUTPUTS
Balanced Analog Outputs:
XLR balanced (pin 2 hot)
Impedance:
40 ohm
Output:
@ full scale +16.5 dbm (5.2V RMS)
MAx Output Level:
+22 dbm
THD+N @ 1k:
.0006% @ 0dbfs / .0004% @-30dbfs
D/A Conversion:
PCM 24 bit delta sigma 8x oversampling, 64x 128x 256x Native and DoP
Frequency Response @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
Dynamic Range:
>120dB A-Weighted
ON UNBALANCED OUTPUTS
UNBalanced Analog Outputs:
RCA
Impedance:
40 ohm
Output:
Full scale at front panel +6 dbm (1.2V RMS)
Output LEVEL:
+8 dbm (2V RMS)
THD+N @ 1k:
.0006% @ 0dbfs / .0004% @-30dbfs
D/A Conversion:
PCM 24 bit delta sigma 8x oversampling, DSD 128 Native
Frequency Response @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
Dynamic Range:
>120dB A-Weighted
GENERAL SPECIFICATIONS
General Specifications:
EMC: Complies: EN 55103-1, EN 55103-2, FCC part 15 and Class B
rohs:
Complies with: EU RoHS Directive 2002/95/EC
Safety:
Certified to: IEC 60065, EN 55103-2
Operating Temperature:
32 F to 105 F (0 C to 40 C)
Storage Temperature:
-22 f to 167 F (-30 C to 70 C)
Finish:
Anodised aluminium
Optional Platinum with nickel plating, brass knobs and buttons.
DIMENSIONS:
17” x 12.5“ x 4.5”
43,18, 31,75, 11,43 cm
Shipping Dimensions:
22”x 17”x 7”
55,88, 43,18, 17,78 cm
WEIGHT:
15 lbs, 6.8 kg.
Shipping Weight:
18 lbs, 8,2 kg.
MAINS voltage:
-100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
TRIGGER OUT:
TRS connector for 5V external trigger on ring.
Power consumption:
28 Watts (6W standby)
warranty PARTS AND LABOUR:
2 years
