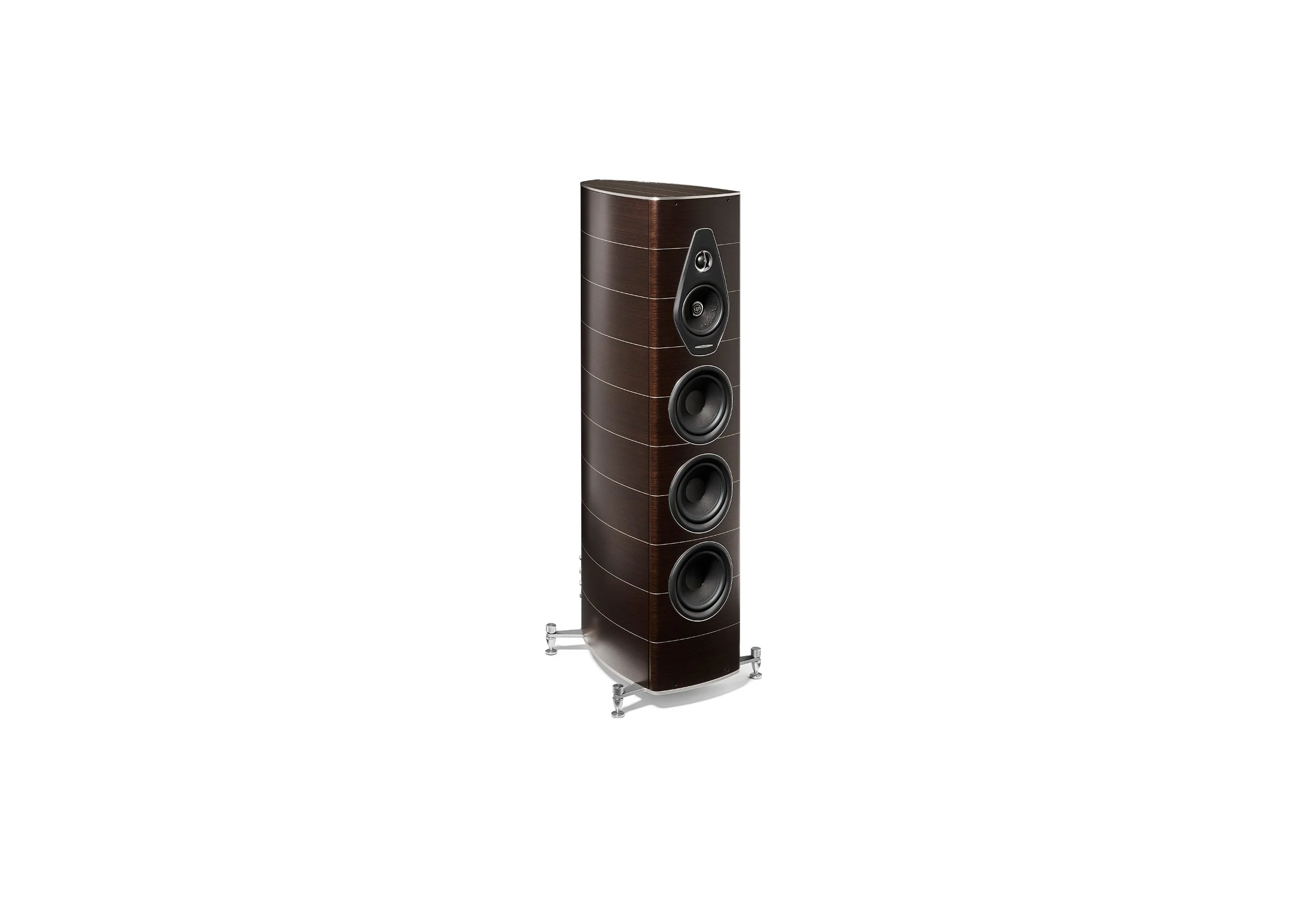

OLYMPICA NOVA V 3-way, floorstanding loudspeaker: £14900/pair
A SONIC MARVEL
The Olympica Nova V is the flagship floor-standing speaker in the Olympica Nova series, designed to deliver unmatched acoustic performance and breathtaking aesthetics. With its advanced technology, luxurious craftsmanship, and powerful presence, it embodies Sonus Faber’s dedication to perfection in sound and design.
Immersive Performance for Larger Spaces
With its larger cabinet and triple-woofer configuration, the Olympica Nova V is capable of delivering room-filling sound with impressive depth and scale. Perfect for large spaces and dedicated listening environments, it provides an unparalleled listening experience, embodying Sonus Faber’s signature Natural Sound.
Iconic Cabinet Design
The Olympica Nova V features Sonus Faber’s signature lute-shaped cabinet, crafted with eight layers of bent wood to eliminate parallel surfaces and minimise internal resonances. This innovative design enhances natural sound reproduction while maintaining the timeless elegance for which Sonus Faber is renowned. The integrated Stealth Ultraflex™ system, crafted from extruded aluminium, ensures precise airflow control, improving bass response and reducing turbulence for enhanced clarity and dynamics.
Advanced Acoustic Technology
28mm Silk Dome Tweeter with DAD™ Technology: The tweeter utilises Damped Apex Dome (DAD™) technology to extend high frequencies beyond 30 kHz, providing smooth, natural, and highly detailed treble.
150mm Midrange Driver: The midrange driver incorporates a natural fibre diaphragm mounted in an organic basket, ensuring tonal accuracy and dynamic performance. An aluminium phase plug enhances dispersion and ensures consistent sound across the listening area.
Triple 180mm Woofers: The Olympica Nova V is equipped with three sandwich cone woofers featuring paper pulp diaphragms and hi-tech foam cores. This design delivers powerful, fast, and controlled bass that integrates seamlessly with the midrange and treble.
Structural Rigidity
Like the Homage Tradition and Reference collections, the Olympica Nova V features a cabinet crafted from eight layers of bent wood, delivering exceptional rigidity and structural stability. This design minimises vibrations and enhances overall acoustic performance, reproducing crystal-clear sound.
Useful Documentation - OLYMPICA NOVA V
OLYMPICA NOVA V SPECIFICATIONS
System:
3 way, full para-aperiodic vented box “Stealth Ultraflex”, floorstanding loudspeaker system.
Loudspeakers:
Tw: Ø 28 mm, H28 XTR3, Neodymium “cup design” motor system with High Definition DAD™ driver, Soft dome.
Md: Ø 150 mm, MW15 XTR2-04, CCAW wire on a “eddy current free” voice coil
W: Ø 3x180 mm, W18XTR2-12
Crossover Points:
250, 2500 Hz.
Premium Hi-Fi components
Frequency response:
32 Hz – 35000 Hz
Recommended power amplifier:
60W - 400W, undistorted signal
Connectivity:
4 connectors binding post: Hi, Mid-Low
Decoupling Systems:
Stainless steel spikes
Nominal impedance:
4 Ohm
Sensitivity:
90 db SPL (2.83V/1 m)
Product dimensions (HxWxD):
1174 x 424 x 529 mm / each
46.3 x 16.7 x 20.8 in / each
Dimensions with packaging (HxWxD):
1320 x 550 x 640 mm / each
52 x 21.7 x 25.2 in / each
Weight:
44 Kg ea – net weight
97 Ib ea – net weight
Packaging weight:
57 Kg / each
125.7 lb / each
Cabinet:
Lute shape
Semi gloss/ high gloss wood
Black leather
Aluminum
FINISHES:
Black, Walnut, Wenge
warranty:
2+6 Years
