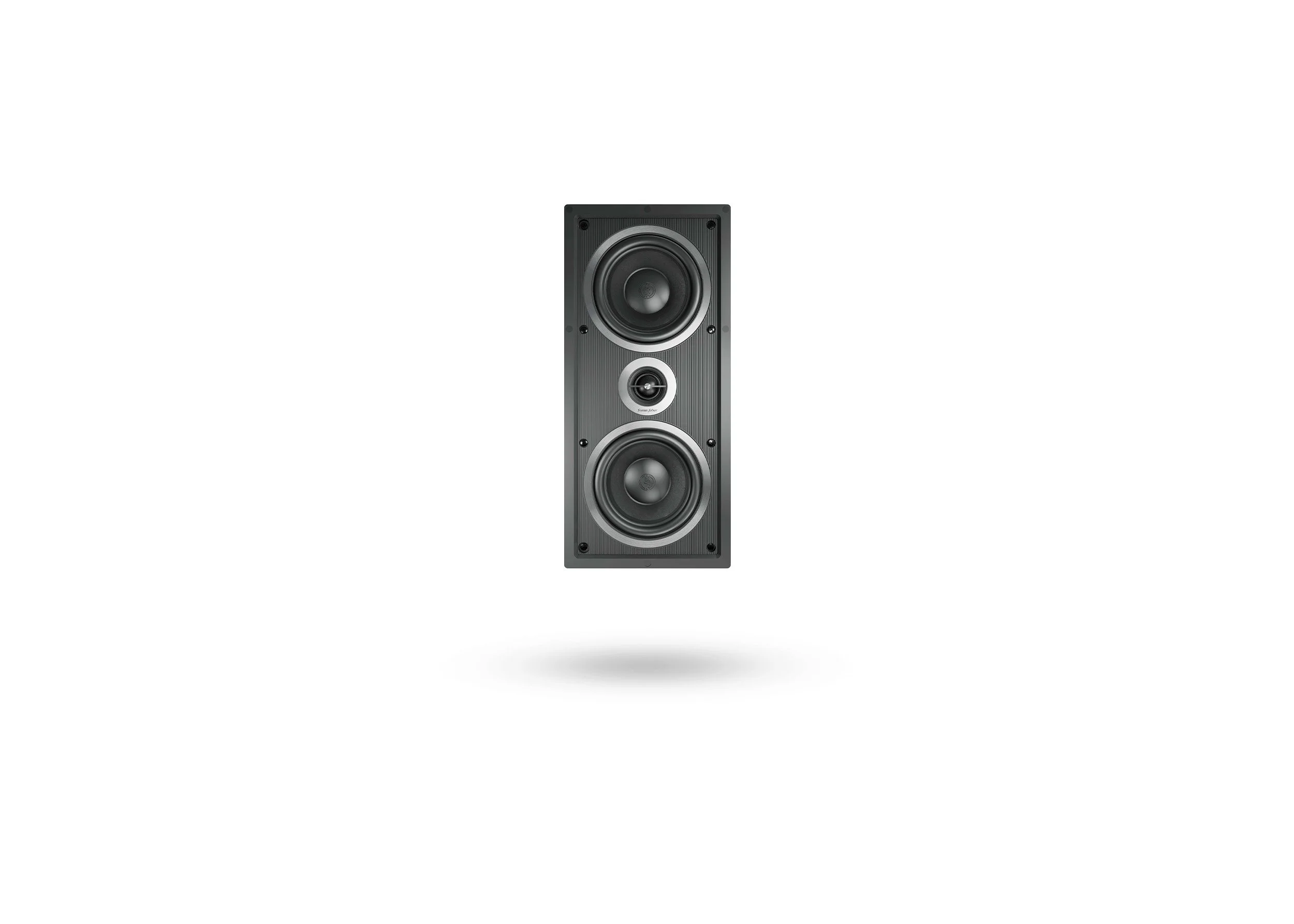

PALLADIO PL-563
PL-563 2-way, left/right/center in-wall loudspeaker, infinite baffle £1000/unit
Versatile Design and Performance
The PL-563 inherits both sonic and aesthetic elements from the Sonetto Collection, offering exceptional versatility. Its adaptable design allows it to function as a front, side, or surround channel when mounted vertically, or as a centre channel in a horizontal orientation. The tweeter ring can be adjusted to suit the chosen positioning.
Magnetic, edgeless square metal grilles are paint-ready, enabling seamless integration into any décor. With the swing-out dog fixing system, installation is quick and secure, ensuring a perfect fit into plasterboard.
2-Way
In-wall system
1.1 inch
Tweeter D.A.D. driver
x2 6.5 inch
Midwoofers
Useful Documentation - PALLADIO PL-563
PALLADIO PL-563 SPECIFICATIONS
System:
2 way left/right/center in-wall system.
Infinite baffle
Loudspeakers:
Tweeter DAD driver: 29 mm / 1.1’’
Midwoofer: 2 x 165 mm - 2 x 6.5’’
Recommended power amplifier:
40 – 250W
Undistorted signal
Packaging weight:
9.18 Kg
20.24 lb
Dimensions with packaging (HxWxD):
26.7 x 57.7 x 31.7 cm
10.5 x 23.0 x 12.5 in
Product dimensions (HxWxD):
Frame outer: 471 x 216 mm - 18.5 x 8.5’’
Cut out: 448 x 192 mm - 17.6 x 7.6’’
Depth behind surface: 100 mm / 4’’
Protrusion: 13 mm / 0.51’’
warranty:
5 Years
