PALLADIO PC-563P
PC-563P 2-way, point in-ceiling loudspeaker infinite baffle £1000/unit
Sophisticated Design and Directed Sound
The PC-563P draws inspiration from the Sonetto Collection, showcasing a harmonious blend of design and function. Its magnetic, edgeless metal grilles—available in round or square options—can be painted to complement any interior.

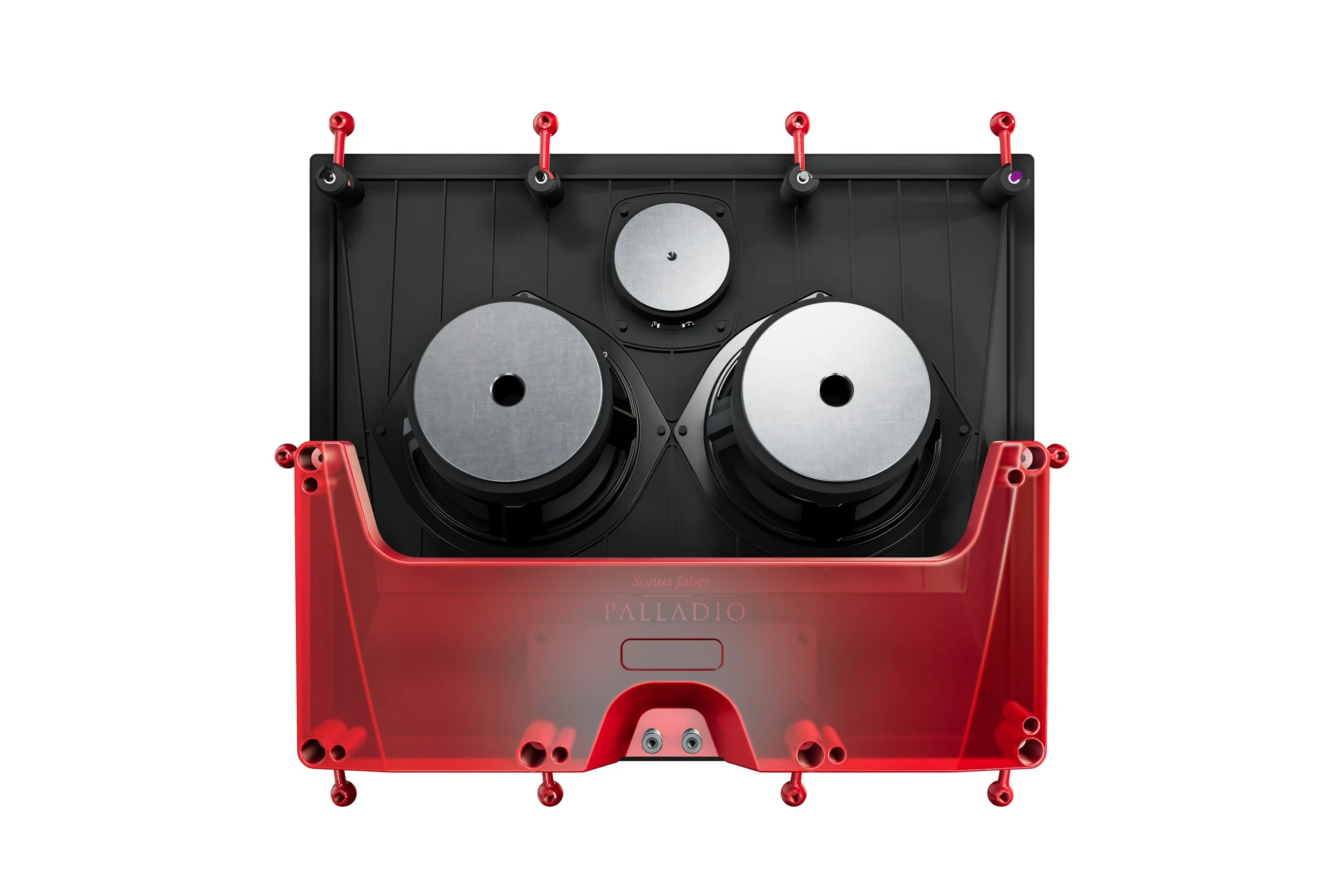

Designed for ceiling installation, the PC-563P features angled drivers to precisely direct sound toward the listening position. Installation is efficient and secure with the swing-out dog fixing system, ensuring quick placement in the plasterboard.
2-Way
In-ceiling system
1.1 inch
Tweeter D.A.D. driver
6.5 inch
Midwoofer
Useful Documentation - PALLADIO PC-563P
PALLADIO PL-563P SPECIFICATIONS
System:
2 way point in-ceiling system.
Infinite baffle
Loudspeakers:
Tweeter DAD driver: 29 mm / 1.1’’
Midwoofer: 2 x 165 mm - 2 x 6.5’’
Recommended power amplifier:
40 – 250W
Undistorted signal
Packaging weight:
10.18 Kg
22.4 lb
Dimensions with packaging (HxWxD):
28.7 x 57.1 x 48.8 cm
11.3 x 22.5 x 19.2 in
Product dimensions (HxWxD):
Frame outer: 460 x 386 mm - 18.1 x 15.1’’
Cut out: 433 x 359 mm - 17 x 14.1’’

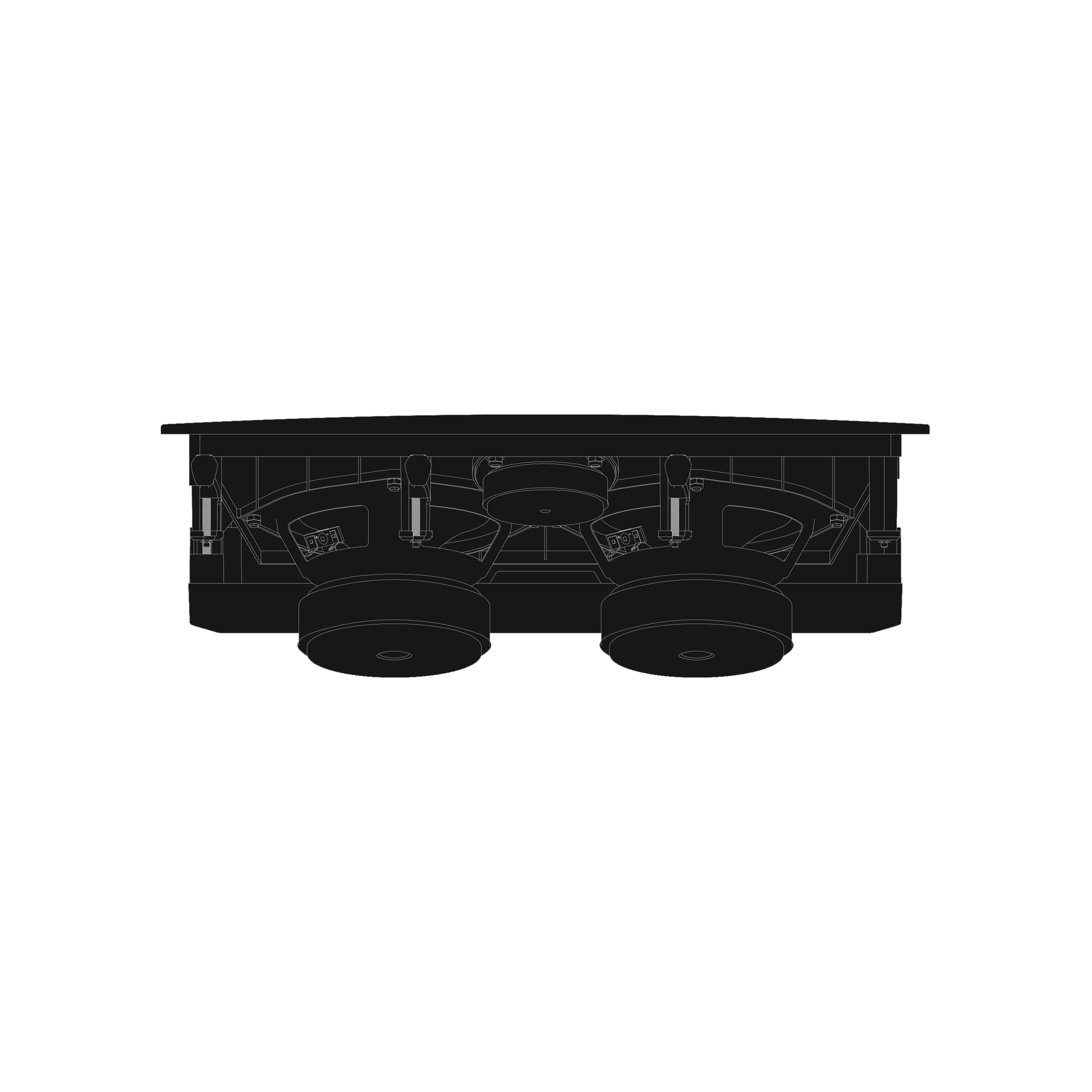

Depth behind surface: 148 mm / 5.82’’
Protrusion: 13 mm / 0.51’’
warranty:
5 Years
