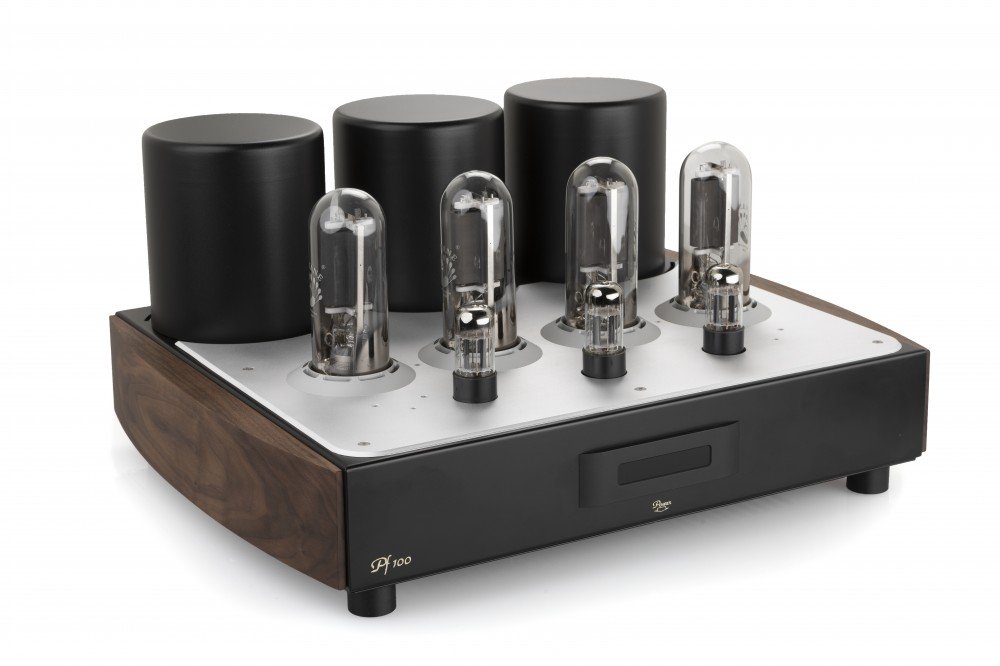

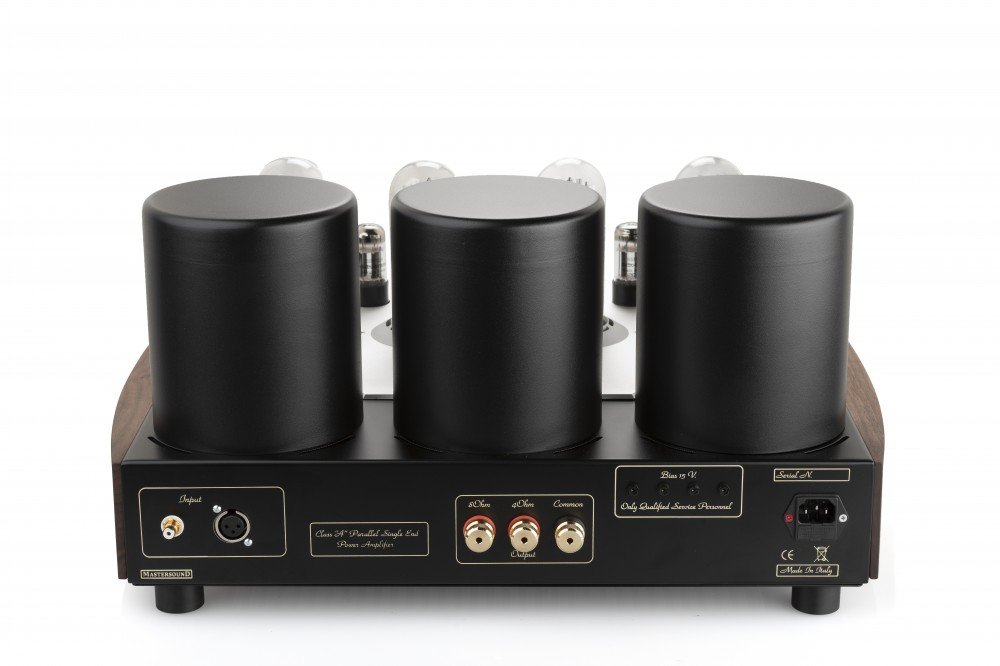

PF100 LITZ MONOBLOCK

PF100 LITZ EDITION 2 x 107w parallel pure-triode Class “A” (LITZ OT): £46950/Pair

The MastersounD PF100 Litz Edition redefines high-power valve amplification, merging advanced technology with the timeless appeal of single-ended triode sound, and is ideally paired with the PHL5 or SPETTRO preamps for the ultimate performance. Together, they elevate its sonic capabilities, providing unparalleled control, tonal balance, and refinement, resulting in an exceptional high-fidelity setup that exemplifies MastersounD’s dedication to uncompromising audio excellence.

At the heart of the PF100 Litz Edition is its innovative use of Litz wire technology, which reduces skin effects in the output transformers, ensuring superior signal transmission, clarity, and precision. A quartet of 845 valves, renowned for their dynamic presence and rich tonal warmth, drives the impressive 107W per channel output in Class “A”, making this amplifier capable of delivering both subtle detail and commanding power. Whether playing delicate passages or high-energy peaks, the PF100 Litz Edition maintains its integrity and musicality. Its wide bandwidth (12Hz to 90kHz at 0 dB) and zero negative feedback guarantee that the sound reproduction remains pure and distortion-free, capturing every nuance of the music.

Crafted with precision and finished to an impeccable standard, the PF100 Litz Edition is a powerhouse and a visually stunning component for any audiophile’s listening environment.

PF100 LITZ EDITION TECHNICAL SPECIFICATIONS


POWER:

107w Class “A”

VALVE COMPLEMENT:

3 x 6SN7 - 4 x 845

InputS:

1 line RCA + 1 line XLR

Automatic settable bias:

Yes

Load impedance:

4 – 8 Ohm

Bandwidth:

12hz > 90khz 0 db

Negative feedback:

0 dB

Consumption:

454w

Dimensions:

54 x 47 x 27 cm

WEIGHT:

50 Kg

Warranty parts and labour:

5 Yrs (12 months for valves)

Output transformer:

MastersounD special in Litz

INPUT IMPEDANCE:

50k ohm / sens. 1 volt
