PHL5
PHL5 Preamplifier in Class “A” + Phono (MM): £8250

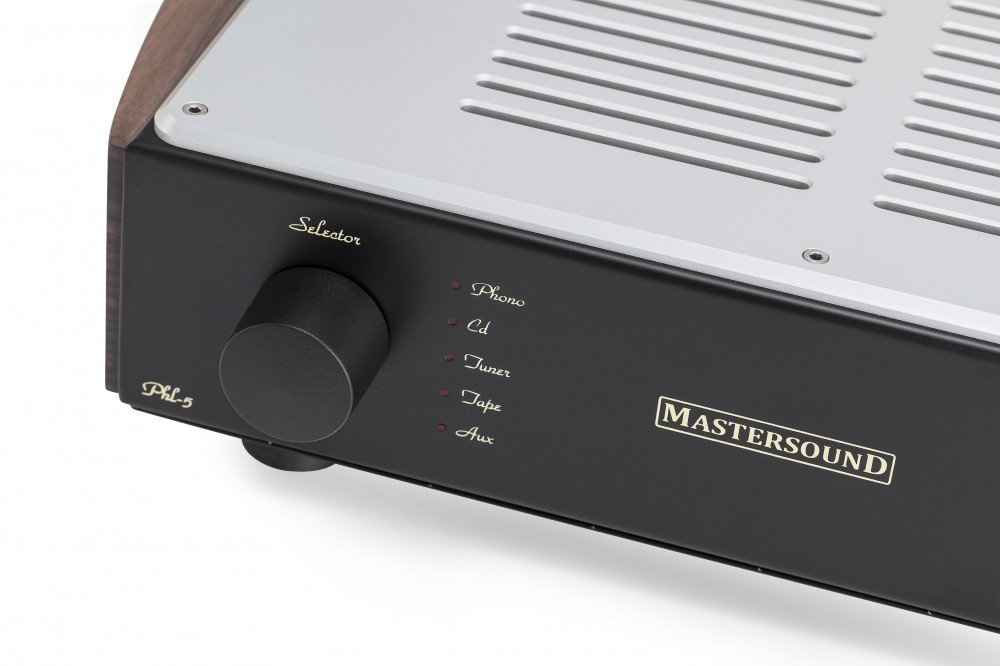

The PHL5 Preamplifier has a long history of success, having been continuously refined and improved over the years. At its core, the simplicity and elegance of the PHL5 circuit provide the foundation for extraordinary dynamics, rich harmonics, and an expansive soundstage. The latest edition, distinguished by its thick satin aluminium front plate, introduces several significant advancements.

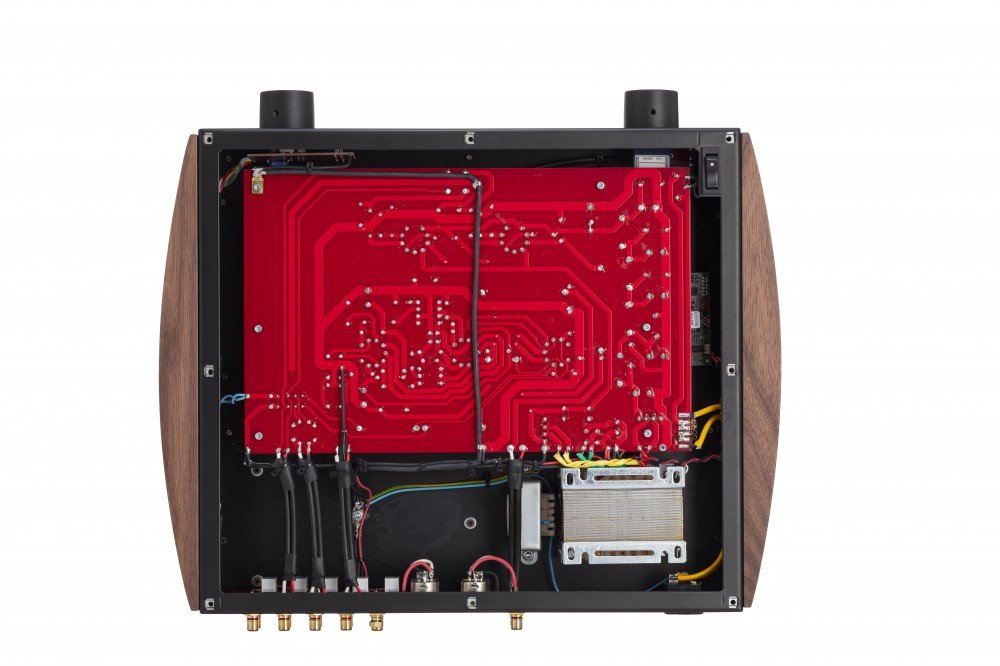

A newly designed PCB board incorporates notable enhancements, while, similar to the Spettro, an advanced filtering system has been added to ensure greater signal purity and transparency. The PHL5 features a full-tube MM phono stage powered by a valve complement of 3 x ECC82 and 2 x ECC83, delivering superior vinyl reproduction quality. Additionally, the latest version includes XLR connections for improved compatibility across various setups.
PHL5 TECHNICAL SPECIFICATIONS
RIAA curve:
+/- 0.5 dB
Input impedance:
50k ohm
Output impedance:
450 ohm
INPUTS:
3 line RCA - 1 line XLR - 1 Phono MM RCA
Outputs:
1 RCA - 1 XLR - 1 rec RCA
REMOTE CONTROL:
Yes
Consumption:
24 W
Dimensions:
46 x 39 x 14 cm
Weight:
10 Kg
Warranty parts and labour:
5 Yrs (12 months for valves)
VALVE COMPLEMENT:
3 x ECC82 - 2 x ECC83
Bandwidht:
1 Hz / 100 kHz – 0 dB
