GEMINI 2 x 50w push-pull (25w triode) Class “A” + Phono (MM): £12500

The GEMINI Integrated Amplifier represents a bold step in MastersounD’s dedication to high-performance valve amplification. Powered by KT150 valves, it delivers 2 x 50 watts in push-pull Class “A” mode and can operate at 25 watts per channel in triode mode. This adaptability offers an exceptional listening experience, balancing power, finesse, and tonal richness.

The Gemini's push-pull configuration is meticulously designed and provides ample headroom and drive for a wide range of loudspeakers. Whether reproducing complex orchestral arrangements or intimate acoustic sessions, its sound is effortless, transparent, and musically engaging.

Adding a built-in phono stage (MM) further elevates its versatility, making it a superb choice for vinyl enthusiasts seeking the warmth and immediacy of analogue playback. With its elegant aesthetics and robust design, the Gemini is a testament to MastersounD’s mastery of amplifier engineering.

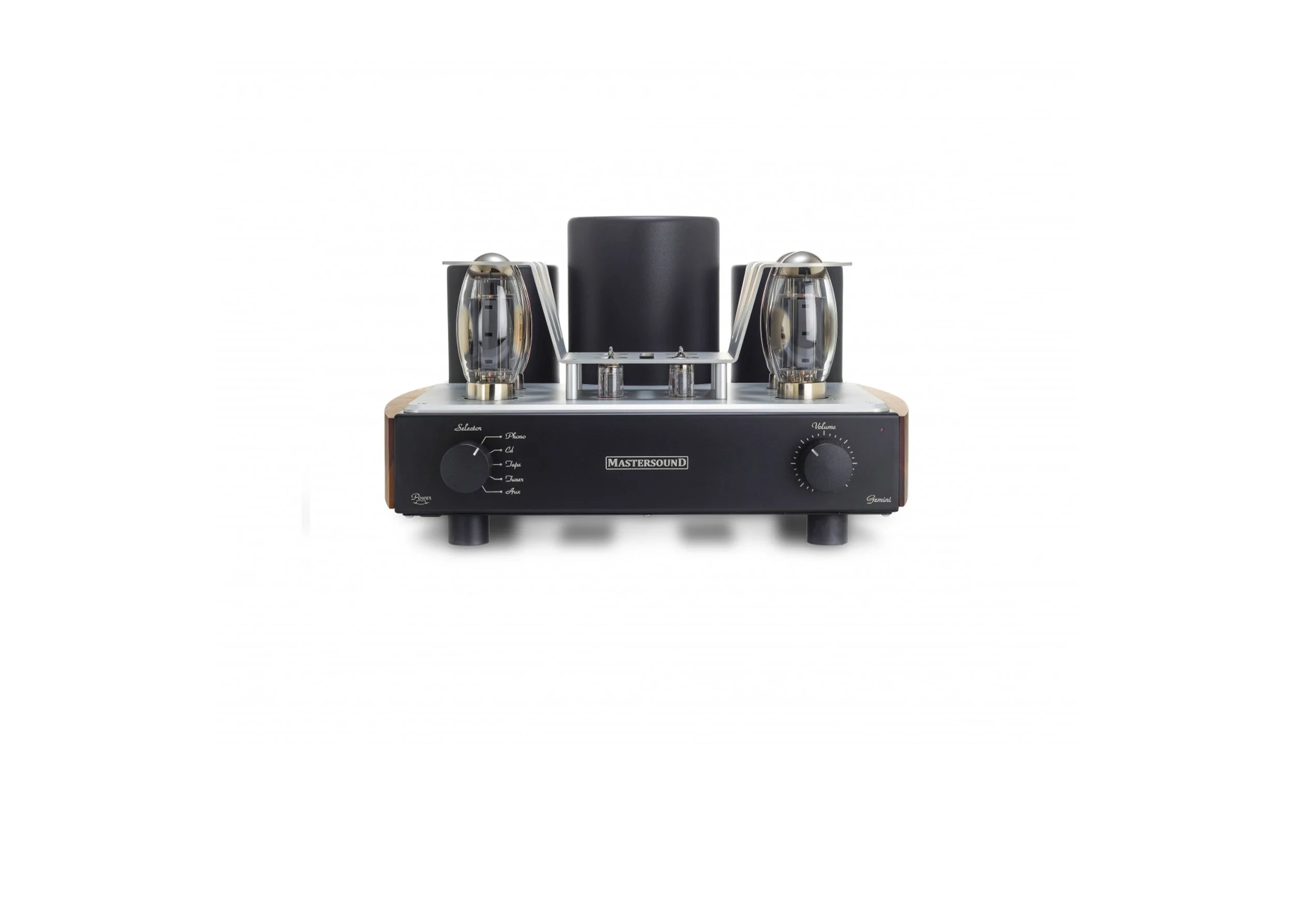

GEMINI FRONT III.jpg
GEMINI SIDE.jpeg

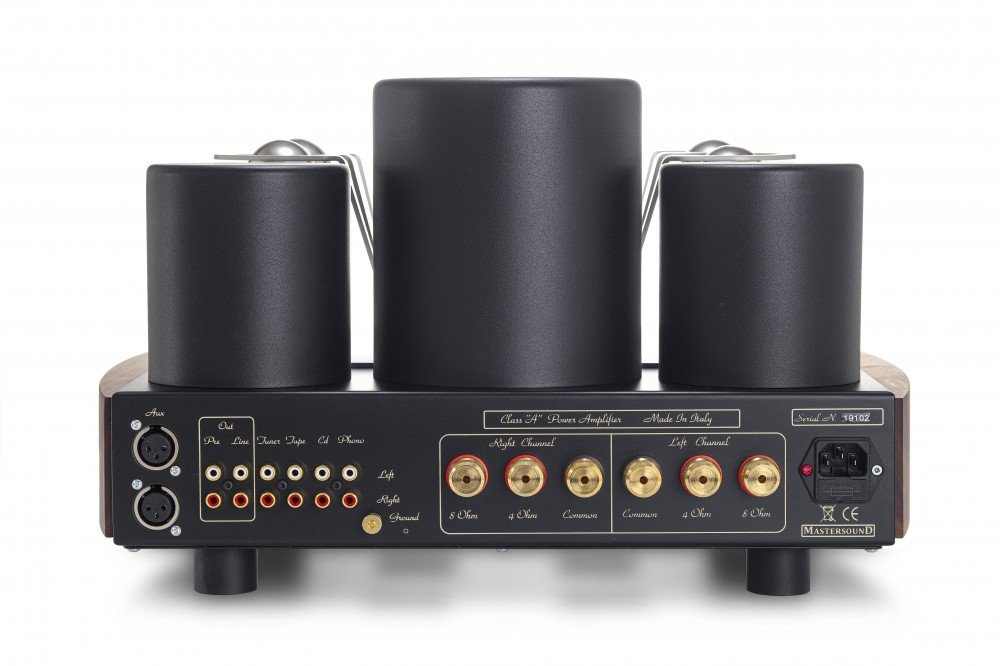

GEMINI REAR.jpeg

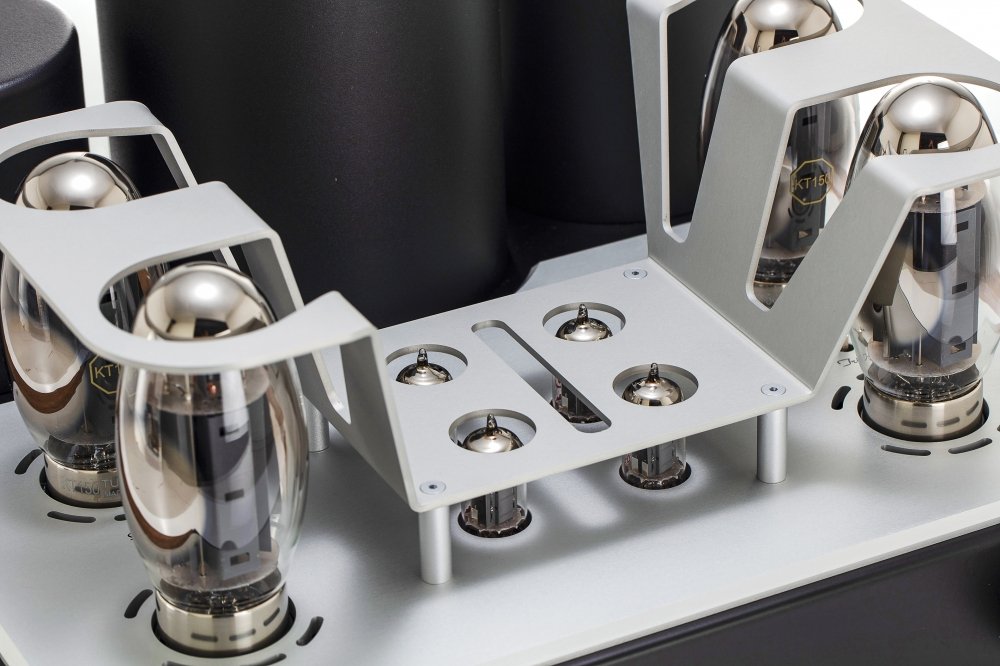

GEMINI DETAIL II.jpeg
GEMINI DETAIL III.jpeg
GEMINI DETAIL.jpeg

GEMINI TECHNICAL SPECIFICATIONS

POWER:

2 x 49w (2 x 25w triode) Class “A”

VALVE COMPLEMENT:

4 x KT150 - 4 x ECC802

InputS:

XLR: 1 x Line, RCA: 1 x phono MM - 3 x Line - 1 Direct (Output line)

OUTPUT:

1 Preamplified - 1 Line

Automatic bias:

Yes

Load impedance:

4 – 8 Ohm

Bandwidth:

14 hz / 22k hz 0 db

REMOTE CONTROL:

Yes

Negative feedback:

0 dB

Consumption:

418w

Dimensions:

45 x 43 x 27 cm

WEIGHT:

31 Kg

Warranty parts and labour:

5 Yrs (12 months for valves)

Output transformer:

MastersounD

INPUT IMPEDANCE:

50k ohm / sens. 1 volt
