EVOLUTION 845
SENSO - DUEVENTI - DUETRENTA - ICONA - COMPACT 300B - COMPACT 845 - EVO 300B - GEMINI - EVOLUTION 845
EVOLUTION 845 2 x 55w parallel pure-triode Class “A” dual mono: £17950

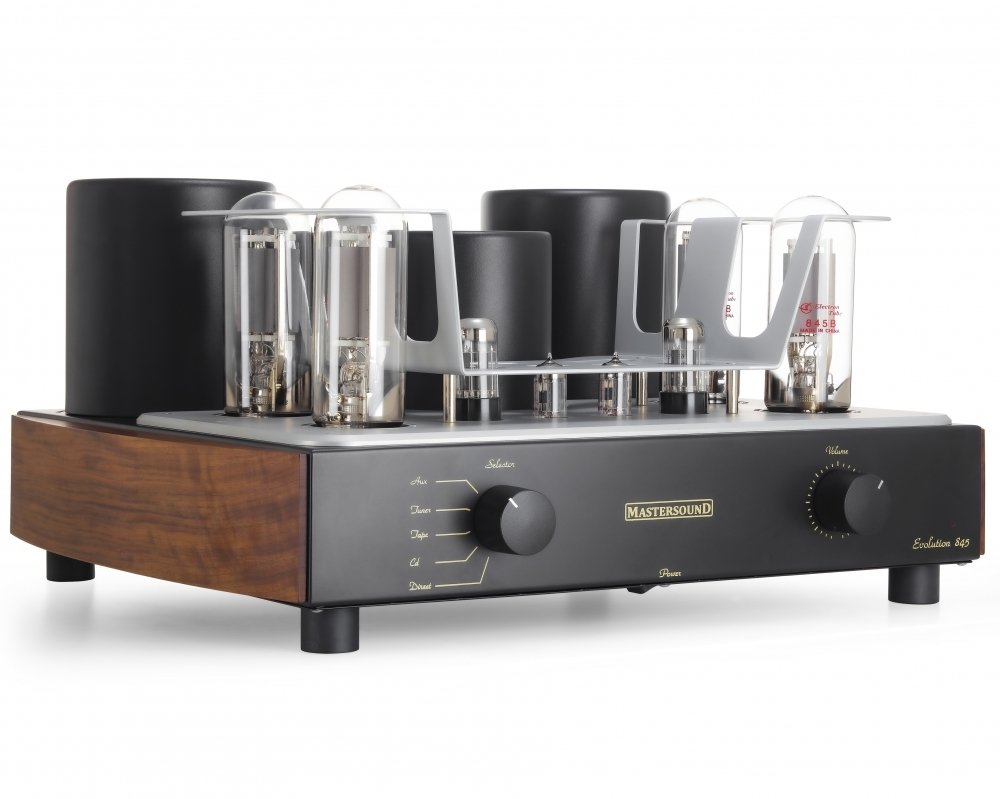

The EVOLUTION 845 Integrated Amplifier showcases MastersounD’s expertise in crafting high-wattage, pure-triode designs. Employing four 845 valves in a parallel configuration, this dual-mono amplifier delivers 2 x 55 watts of pure triode Class “A” power. Its parallel triode design ensures an effortless and authoritative sound, combining remarkable dynamics with a refined tonal balance.
Built for those who demand the pinnacle of musical fidelity, the Evolution 845’s dual-mono architecture provides exceptional channel separation, enhancing soundstage depth and imaging precision. Its meticulous design ensures that every detail is faithfully reproduced, bringing the listener closer to the heart of the performance.
With its striking appearance and uncompromising sonic performance, the Evolution 845 is a testament to MastersounD’s dedication to excellence in valve amplification, offering an unparalleled auditory experience for discerning enthusiasts.
EVOLUTION 845 TECHNICAL SPECIFICATIONS
POWER:
2 x 50w Class “A”
VALVE COMPLEMENT:
4 x 845 - 2 x ECC802 - 2 x 6SN7
InputS:

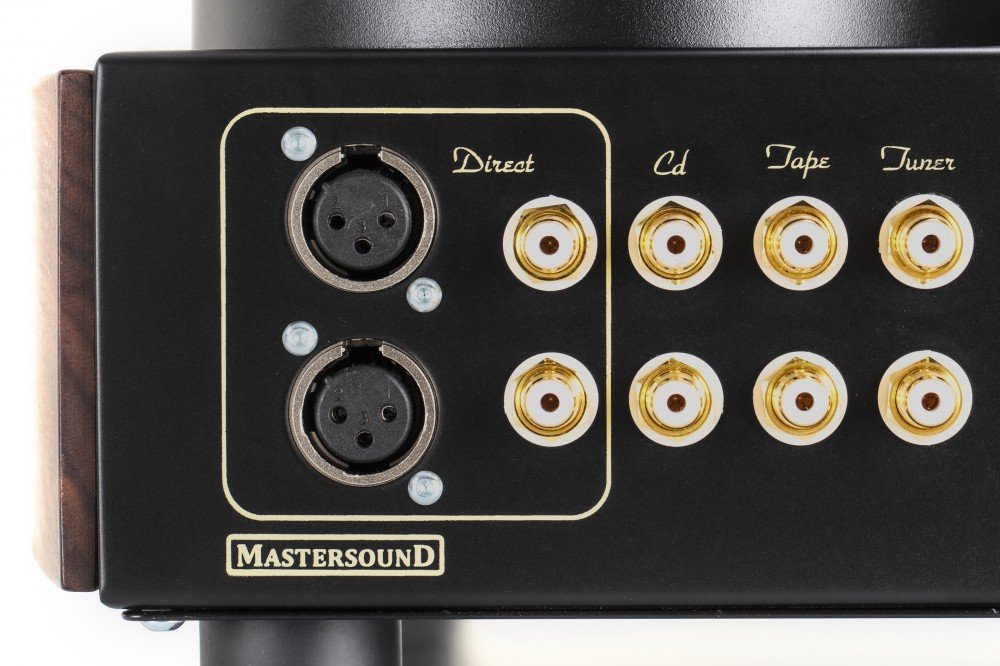

XLR: 1 x Line + 1 Direct, RCA: 3 x Line + 1 Direct
Automatic bias:
Yes
Load impedance:
4 – 8 Ohm
Bandwidth:
8 hz / 40k hz 0 db
REMOTE CONTROL:
Yes
Negative feedback:
0 dB
Consumption:
460w
Dimensions:
54 x 47 x 27 cm
WEIGHT:
53 Kg
Warranty parts and labour:
5 Yrs (12 months for valves)
Output transformer:
MastersounD
INPUT IMPEDANCE:
50k ohm / sens. 1 volt
