Atoll CD80 Evolution CD Player
ATOLL CD80 EVO: £1050
DA200 DAC BOARD: £350
The Atoll CD80 Evolution combines advanced innovation and premium craftsmanship, offering exceptional performance for audiophiles. It features cutting-edge power supply design, refined conversion stages, and high-quality construction for an elevated listening experience.
Key Features:
Refined Construction:
Elegant 4 mm brushed aluminum front panel.
Robust double-sided PCBs with nickel/gold finish for enhanced reliability and signal clarity.
Exceptional Performance:
BURR-BROWN PCM1791A DAC with 24-bit/192 kHz resolution, delivering:
Dynamic range: 113 dB.
Signal-to-noise ratio: 113 dB.
Differential audio output stages with discrete components, polarized in Class A for natural and dynamic sound reproduction.
Enhanced Power Supply Design:
10 regulated power supplies, including a specific low-noise supply for the converter.
Linear power supply with a 30 VA transformer for digital stages.
Separate 4.6 VA linear transformer for audio stages and an additional 1.6 VA low-consumption transformer.
Versatile Playback:
Pure audio CD player compatible with CD, CD-R, CD-RW, MP3, and WMA-AAC formats.
Built with original TEAC central CD mechanics, the latest in CD technology.
User-Friendly Features:
Low-power OLED display with CD-Text capability for a sleek and functional interface.
Fully compatible with the ATOLL global remote control for seamless operation.
Upgradeable Options:
Optional 24-bit/192 kHz DAC card to extend digital performance across all Evolution series CD players.

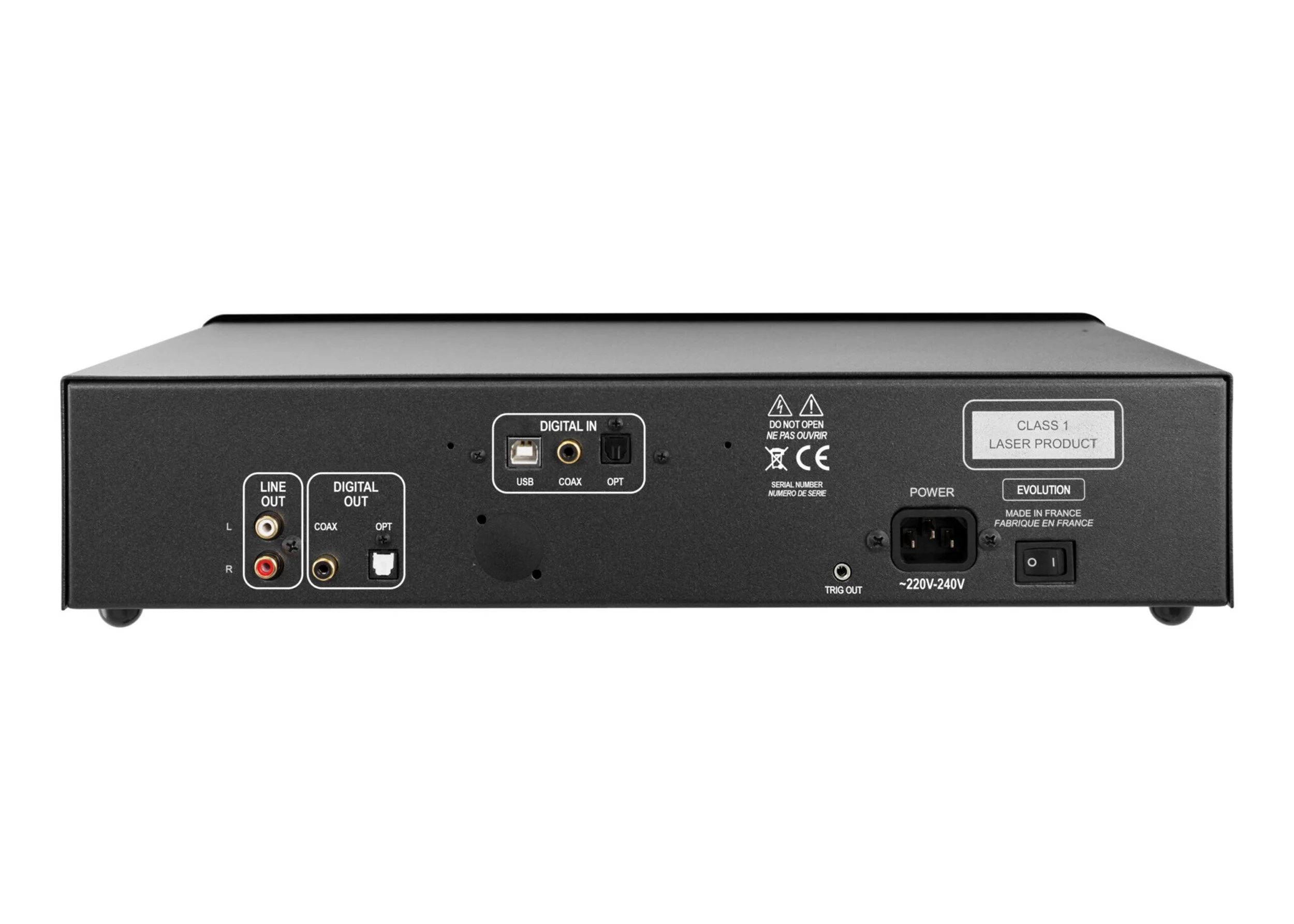

CONNECTIVITY
Outputs
1 Line digital outputs (right & left).
1 Coaxial digital output (to a converter D/A).
1 Optical digital output (to a converter D/A).
12V Trigger output.
Optional Digital Board
USB input (type B).
Digital input (Coaxial.).
Digital input (Optical).
Useful Documentation - CD80 EVO
To utilise the USB input of the optional DAC board, you need to install a specific driver for Windows computers; this driver is not required for MAC and Linux systems. You can download it below:
CD50 EVO SPECIFICATIONS
Power:
30 + 4,6 + 1,6 VA
Total of capacitors:
21,400 µF
Signal/Noise Ratio:
113 dB
Converter (D/A):
PCM1791A
Dynamic:
113 dB
Distortion at 1 kHz:
0.001%
Output level:
2,5 Vrms
Output impedance:
5,6 Ω
Bandwidth:
5 Hz – 20 kHz
Rise time:
2.0 µs
Standby consumption:
< 0.5 W
Operating consumption:
9 to 16 W
Dimensions:
440×280×95 mm
Weight:
6 Kg
FINISHES:
Anodised Black, Natural Aluminium
warranty:
2 Years
