Atoll CD400SE CD PLAYER

ATOLL CD400 SE: £5400

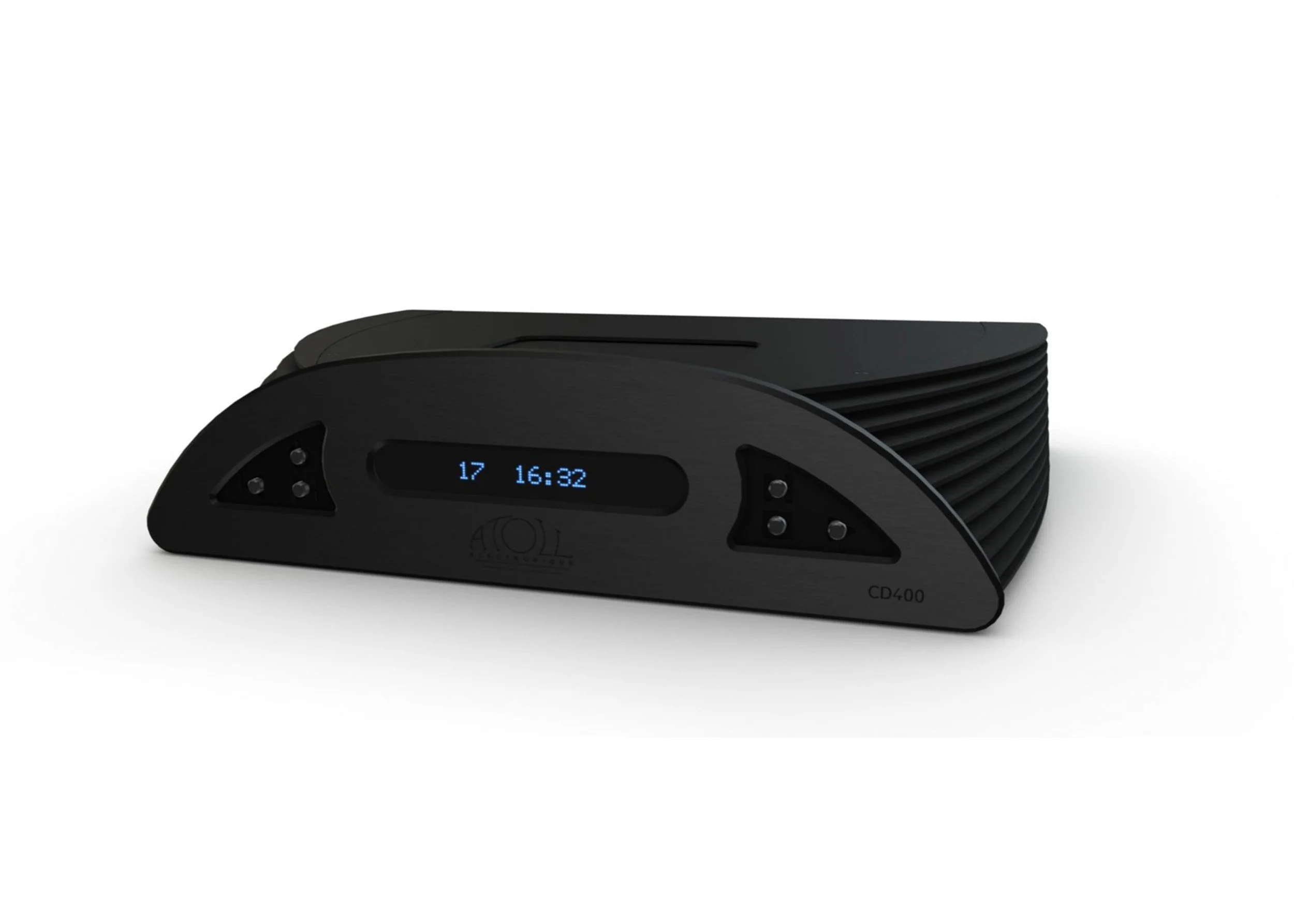

The Atoll CD400SE is a premium top-loading CD player that showcases impeccable engineering and cutting-edge design to provide a truly immersive listening experience. With a robust aluminium chassis and advanced mechanical design, it is built to deliver precision, reliability, and musicality.

Key Features:

  • Exceptional Build Quality:

    • 10 mm brushed aluminium front panel available in aluminium or black finish.

    • Chassis with massive aluminium sides for enhanced mechanical stability and vibration absorption.

    • Top-loading CD drive designed with precision-engineered steel and aluminium components, treated against vibrations and decoupled from the frame with metal spacers.

  • Optimised Playback:

    • Pure audio CD player compatible with CD, CD-R, CD-RW, MP3, and WMA-AAC formats.

    • 2x PCM1794 converters (one per channel) for superior sound accuracy and dynamics.

    • Symmetrical audio stages with discrete components and MKP audiophile capacitors, ensuring pure and natural sound reproduction.

  • Power Supply Excellence:

    • A 160 VA toroidal transformer dedicated to audio stages for stable and clean power delivery.

    • Separate 30 VA linear transformer for digital stages to minimise interference.

  • User-Friendly Design:

    • Low-consumption OLED display with CD-Text support for track and album details.

    • Includes the ATOLL global remote control for seamless operation.

The digital signals are perfectly shielded and follow an optimised path to fight against the effects of jitter. In the CD400SE, using two independent converters, one per channel, avoids crosstalk and significantly improves the signal-to-noise ratio and dynamics.

CONNECTIVITY

Inputs
2 Digital inputs (1 optical & 1 coaxial).
1 USB-B input.

Outputs
2 Stereo XLR outputs.
1 Stereo line output.
2 Digital outputs (1 optical & 1 coaxial).

Useful Documentation - CD400 SE

To utilise the USB input, you need to install a specific driver for Windows computers; this driver is not required for MAC and Linux systems. You can download it below:

CD400 SE SPECIFICATIONS


Power:

30+160 VA

Total of capacitors:

17 000 µF

Output Impedance:

5,6Ω

Output stages:

Symmetrical discrete stages

Output level:

2 Vrms

Converter:

2x PCM1794, 24 bits/192 kHz

Digital Output:

Coaxial & Optical

Digital Input:

Coaxial – Optical – USB-B

Signal/Noise ratio:

125 dB

Distortion at 1 kHz:

0,002%

Bandwidth:

5 Hz – 20 kHz

Rising time:

1,5 µs

Dimensions:

430×320×90 mm

Weight:

9 Kg

FINISHES:

Anodised Black, Natural Aluminium

warranty:

2 Years
