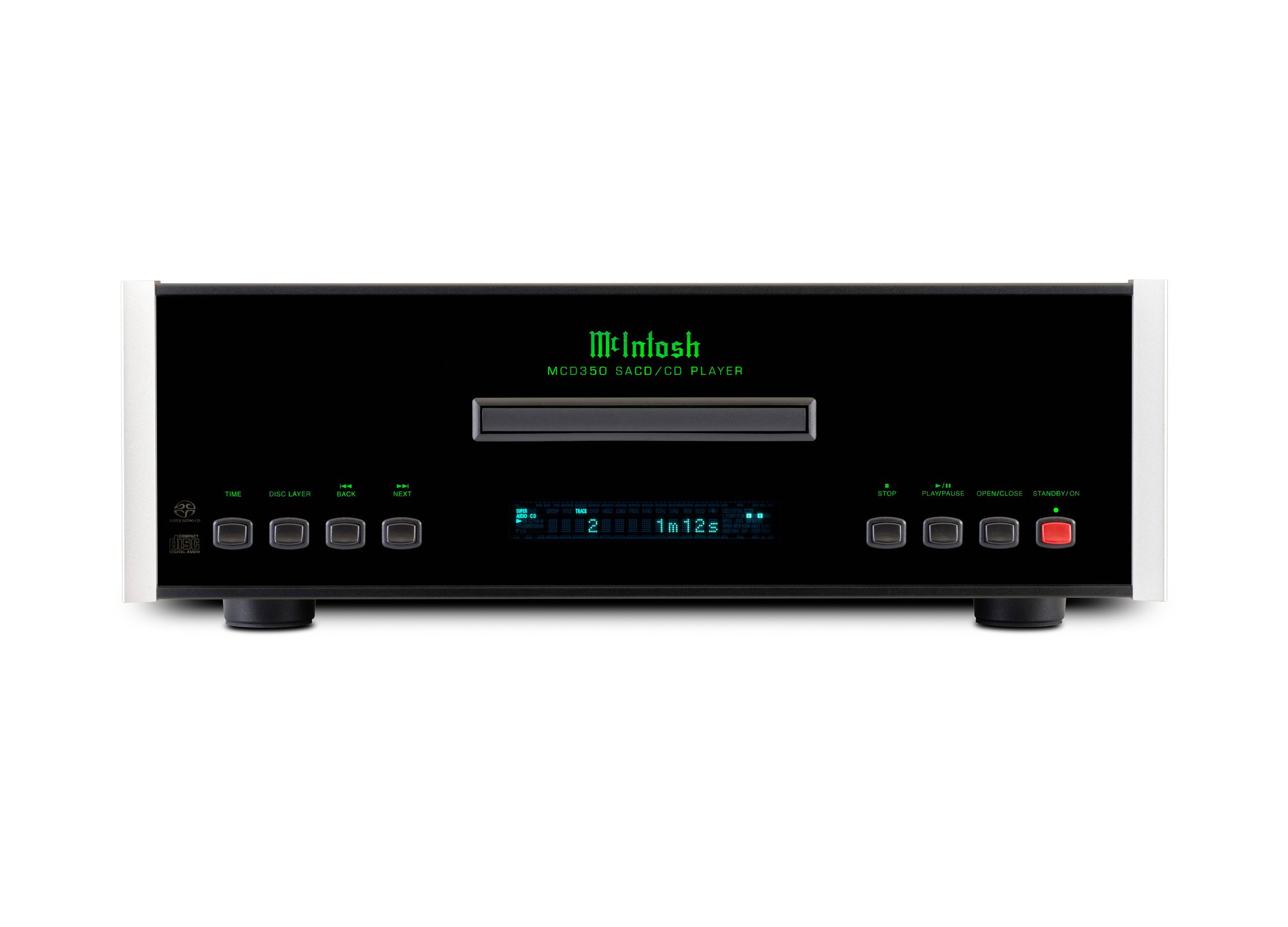

MCD350 2-Channel SACD/CD Player
MCD350: £6995
2-Channel, 32-bit/192kHz DAC
Fixed analog stereo outputs
The MCD350 SACD/CD Player delivers a pure playback experience from your SACDs and CDs.
It features a balanced 2-channel, 32-bit/192kHz digital-to-analogue converter (DAC). Fixed analogue stereo outputs, in balanced and unbalanced offerings, are available. If you prefer to send the digital audio signal to an external DAC, preamplifier, or home theatre processor, a coax and optical output are also available. All analogue and digital coax outputs are gold-plated for superior corrosion resistance.
"Definitive with SACD and impressive with CD too." Awarded 5 out of 5 Globes. - Hi-Fi World
The MCD350 features 2x read speed so that all discs placed in its rigid aluminium die-cast tray are read at higher speeds, storing their data in a buffer memory for better error correction and tracking. A twin laser optical pickup uses a single objective lens with two laser units, each employing different wavelengths optimized for SACD and CD playback. The unit is complete with the classic McIntosh black glass front panel with an illuminated logo and aluminium end caps.
AUDIO #B76E79
Number of Channels:
2
Output Impedance:
600 ohms Unbalanced and Balanced
Dynamic Range:
Better than 100dB
Headphone Output Impedance:
N/A
Fixed Output Level:
2.0Vrms Unbalanced
4.0Vrms Balanced
Frequency Response:
4Hz to 40kHz, +0.5, -2dB (SACD)
4Hz to 20kHz, ±0.5dB (CD)
Total Harmonic Distortion:
0.003% @ 1000Hz (SACD)
0.002% @ 1000Hz (CD)
Variable Output Level:
N/A
Signal To Noise Ratio:
108dB (A-weighted)
Channel Separation:
Better than 98dB (1,000Hz)
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type:
2-channel, 32-bit/192kHz PCM/DSD
USB Sample Rate:
N/A
Digital Output Sample Rate:
Up to 24-bit/192kHz
Digital Coaxial Output:
0.5V p-p/75 ohms
Digital Output Jitter:
N/A
Coaxial Sample Rate:
N/A
Digital Coaxial Input:
N/A
Digital Optical Output:
-15dbm to -21dbm
Digital XLR Output:
N/A
Optical Sample Rate:
N/A
Digital Optical Input:
N/A
Digital Coaxial Output:
N/A
Digital MCT Output:
N/A
CONNECTIVITY
Balanced Fixed Output:
1
Unbalanced Variable Output:
0
Digital Optical Input:
0
Digital Coaxial Output:
1
Digital XLR Output:
0
Unbalanced Fixed Output:
1
Digital Coaxial Input:
0
Digital USB Input:
0
Digital MCT Output:
0
Headphone Output:
0
Balanced Variable Output:
0
Digital MCT INPUT:
0
Digital USB Input Type:
N/A
Digital Optical Output:
1
CONTROL
Power Control Input:
1
Rear Panel IR Sensor Input:
1
Power Control Output:
1
RS232 Control Input:
0
Rear Panel Data Input:
1
GENERAL SPECIFICATIONS
Disc Formats:
CD, SACD, MP3 and WMA
Laser Beam Wavelength:
650nm (SACD)
790nm (CD)
Disc Capacity:
1
Laser Power:
CLASS IIa/CLASS I
Laser Type:
Twin Beam
Standby Power Requirement:
<0.5 watt
WARRANTY PARTS AND LABOUR:
3 Years
Weights & DIMENSIONS
Unit Dimensions (W x H x D):
17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
Unit Weight:
28 lbs (12.7 kg)
SHIPPING Weight:
42.5 lbs (19.2 kg)
