MA352 2-Channel Hybrid Integrated Amplifier
MA352: £8,995
Includes our Hybrid Drive™ technology that uses the best of vacuum tubes and solid state to produce the best sound performance
Vacuum tube preamplifier and solid state power amplifier
200 Watts into 8 Ohms
320 Watts into 4 Ohms
5-band tone control
The MA352 Integrated Amplifier is a hybrid design that combines the finest of vacuum tubes and solid-state audio design principles. The result is an eye-catching amplifier that enjoys the best of these two opposing audio philosophies while reproducing music at the highest quality level.
"Want valve [vacuum tube] sound with solid state power and reliability? McIntosh have a long history in both fields and bring their expertise to glorious fruition in the audacious MA352 hybrid amplifier, packed with power, glowing valves and the expansive sound they enjoy... The MA352 is an amplifier that we thought was glorious in both appearance and sound." Named Best Hybrid Amplifier 2020. – Hi-Fi World
The MA352 has "everything it takes to become an instant classic." - Audio Review
The MA352 includes our Hybrid Drive™ technology that uses the best vacuum tubes and solid state to produce the best sound performance. An all-analogue design, the MA352 has a vacuum tube preamplifier section that is powered by a pair of 12AX7A and a pair of 12AT7 vacuum tubes; its output stage is a direct coupled solid-state amplifier that outputs 200 Watts per channel into 8 Ohm speakers or 320 Watts per channel into 4 Ohm speakers – enough power to drive virtually any set of loudspeakers properly. Dual scale blue Watt meters give an accurate readout of power output for both speaker impedances.
"The hybrid McIntosh amplifier is powerful enough to power your favorite speakers, and refined enough to make the experience memorable, no matter what kind of music you play. Highly Recommended." - Lyd & Bilde
"It is a no nonsense pure analogue amplifier design that does exactly what it should do and that is power your speakers to very high levels without any kind of distortion but with exceptional accuracy and clarity to the music." Winner of Reference Award - The Speaker Shack

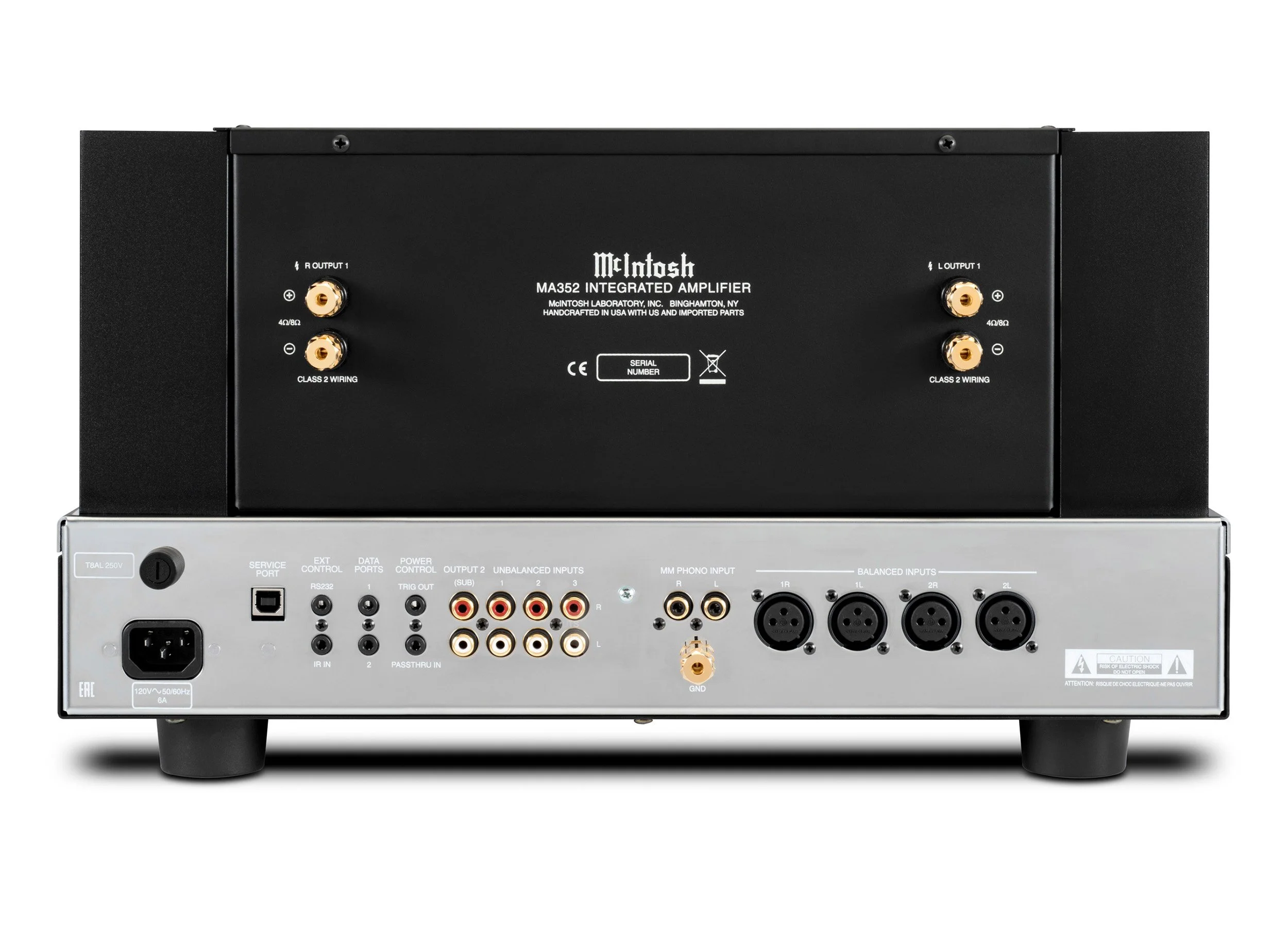

The MA352 has 2 balanced and 3 unbalanced inputs plus 1 Moving Magnet phono input with adjustable loading for connecting a turntable. It has gold-plated speaker binding posts to help prevent corrosion and ensure a quality signal is sent over your speaker cables to your speakers. A stereo preamplifier output is available for connecting a higher-powered amplifier; it can also be used to connect 1 or 2 powered subwoofers for added low frequency performance.
"The quality of the sound never falters. The MA352 remains stunningly clear and detailed with loads of power to spare. With the MA352's impressive 0.03% THD and IMD, you’ll be hard pressed to find any distortion even at window shaking volume." - Tone Audio
McIntosh Monogrammed Heatsink.
"There’s a sense of confidence in the amplifier’s effortlessness in terms of its power capabilities and its handling of music, how it functions and its overall execution. It offers a rounded set of features. It’s solidly built and assembled. It looks gloriously attractive. Finally, and most importantly, it plays music to very high standards of dynamic realism, tonal accuracy and sheer listenability." - SoundStage Australia
The MA352 is packed with numerous McIntosh technologies ,including:
Our patented Power Guard® technology monitors the output signal for over driving and makes real-time micro-adjustments to the input signal to prevent harsh-sounding clipping that could potentially damage your speakers
Our fuse-less short-circuit protection circuit Sentry Monitor™ that will disengage the output stage before the current exceeds safe operating levels and then reset automatically when operating conditions return to normal
McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors that minimise thermal equilibrium lag (or warm-up) time
High Drive headphone amplifier with Headphone Crossfeed Director (HXD®)
A 5-band analogue tone control allows for manual adjustment of your favourite recordings (each band adjustable by ± 12dB)
Home Theater Pass Through lets it be seamlessly integrated into a home theater system
Data Ports to send remote control commands to connected source components
The MA352 "allows you to experience music to the fullest by letting the dynamics and all the energy, as well as the subtleties and slightest nuances, be expressed freely. The width of the soundstage, balance of the frequency ranges, precision of the timbres, impact of the lows and clarity of the highs: the McIntosh MA352 combined all of these qualities with ease, no matter the style of music we listened to." - Son-Vidéo
The unit sits on a stainless steel chassis polished to a mirror finish; vintage McIntosh-styled die-cast aluminum name badges are affixed to each side. Blue output meters, control knobs, an illuminated logo, and a black glass front panel with direct LED backlighting complete the unit. It can be paired with an assortment of CD players, turntables, tuners, media streamers and speakers to complete your home audio system.
MA352 2-Channel Hybrid Integrated Amplifier ELECTRONIC SPECIFICATIONS
FTC Power Output Rating:
300 W
Rated Power Band:
20Hz to 20kHz
Frequency Response +0,-0.5dB:
20Hz to 20kHz
Sensitivity Phono (Moving Magnet):
2.5mV
Signal To Noise Ratio (Moving Coil):
N/A
Signal To Noise Ratio (Power Amp input):
N/A
Maximum Output (Balanced / Unbalanced):
8V Unbalanced
Power Output per Channel:
200 W into 8 ohms
320 W into 4 ohms
Total Harmonic Distortion:
0.03%
Frequency Response, +0, -3dB:
10Hz to 100kHz
Sensitivity High Level (Balanced / Unbalanced):
0.5V/0.25V
Signal To Noise Ratio (Moving Magnet):
82dB
Input Impedance (Balanced / Unbalanced):
20K/20K
Number of Channels:
2
Dynamic Headroom:
1.5dB
Sensitivity Phono (Moving Coil):
N/A
Sensitivity (Power Amp input):
N/A
Signal To Noise Ratio (High Level):
93dB
DAMPING FACTOR:
8 ohms: >200
4 ohms: >100
WARRANTY PARTS AND LABOUR:
3 Years
CONNECTIVITY SPECIFICATIONS
Balanced Input:
2
Phono Input Moving Magnet:
1 (adjustable)
Digital Optical Input:
0
HDMI (ARC) Input:
0
UNBalanced Variable Output:
1
AM/FM Tuner option:
No
Speaker Binding Post Type:
Standard
Headphone Output:
1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output:
2
Unbalanced INPUT:
3
Upgradeable Digital Audio Module:
No
Digital MCT Input:
0
Unbalanced Analog Connector Type:
Standard
Unbalanced Fixed Output:
0
Service Port:
1
Phono Input Moving Coil:
0
Digital Coaxial Input:
0
Digital USB Input:
0
UNBALANCED VARIABLE OUTPUT:
0
Home Theater PassThru:
Yes
DIGITAL AUDIO SPECIFICATIONS
Digital Output Sample Rate:
N/A
Digital MCT Input Sample Rate:
N/A
Digital Coaxial Input Sample Rate:
N/A
Digital USB Input Sample Rate:
N/A
Digital Optical Input Sample Rate:
N/A
CONTROL SPECIFICATIONS
Tone Controls:
5-Band
Power Control Output:
1
Input Level Match:
Yes
Tone Bypass and Input Assign:
Yes
Rear Panel Data Port:
2
RS232 Control Input:
Yes
Rear Panel IR Sensor Input:
Yes
GENERAL SPECIFICATIONS
Vacuum Tube or Solid State:
Preamplifier: Vacuum Tube
Amplifier: Solid State
Dual Layer Chassis:
Yes
Power Requirement:
230V, 50/60Hz, 6.6A
Output Type:
Direct Coupled
Output Meters:
Yes
McIntosh Monogrammed Heatsinks™:
Yes
Chassis Finish:
Polished stainless steel
Standby Power Requirement:
<0.5 Watts
Weights & DIMENSIONS
Unit Dimensions (W x H x D):
17-1/2" (44.5cm) x 9-7/8" (25.1cm) x 17-7/16" (44.3cm)
Unit Weight:
66 lbs (29.9 kg)
SHIPPING Weight:
75 lbs (34.0 kg)
