NANO PHONO V2
Excellence in Every Detail
Clearaudio specialises in analogue music playback, taking responsibility for promoting continuous technological development to establish new standards in audiophile listening pleasure. Their commitment to perfection in manufacturing and measurement is reflected in superior sound quality, offering the purest listening experience. This dedication is evident in their meticulous attention to even the tiniest details.
Without exception, Clearaudio's electronics are crafted from selected components of the highest material quality. The company's systems are designed to ensure optimal performance, with power supplies separated from sensitive circuits to avoid any adverse effects from mains electricity voltages. Additionally, their amplifiers feature non-magnetic MPC RCA plugs that have been carefully designed in-house.
For Clearaudio, quality and uncompromising natural music reproduction follow one guiding principle: excellence demands innovation. By continuously pushing the boundaries of what's possible, Clearaudio is dedicated to creating products that inspire listeners to experience music in new and extraordinary ways.
The Nano phono V2 phono-stage is engineered to eliminate external interference, ensuring flawless performance. Hand-assembled in Erlangen, Germany with meticulous attention to detail and meticulously selected SMD components, it achieves a signal-to-noise ratio of up to 84 decibels. Its plug-in links allow easy input impedance adjustment, maintaining quality with both moving magnet and coil cartridges.
This exceptional sound quality is further enhanced by its powerful headphone amplifier within its solid aluminium housing, offering private listening at the highest fidelity. Perfect for audiophiles seeking exceptional sound in any setting.
NANO PHONO V2 SPECIFICATIONS
Mode:
MM / MC switchable by jumpers
Subsonic filter switchable by jumpers
THD:
< 0.04%
Signal-to-noise ratio:
81dB (A) (MM mode)
70dB (A) (MC mode)
Headroom:
18dB / MC
Max. output voltage:
10V eff (1 kHz)
Amplification:
34dB (MM mode)
54dB (MC mode)
RIAA accuracy:
± 0.4dB @ 20Hz - 50kHz
Input load:
47 kΩ/ 220pF / MM mode
User MC mode
RIAA:
Nach RIAA (Zeitkonst.: 75µs / 318µs / 3180µs)
Channel separation:
> 80dB @ 1kHz
Output impedance:
75Ω

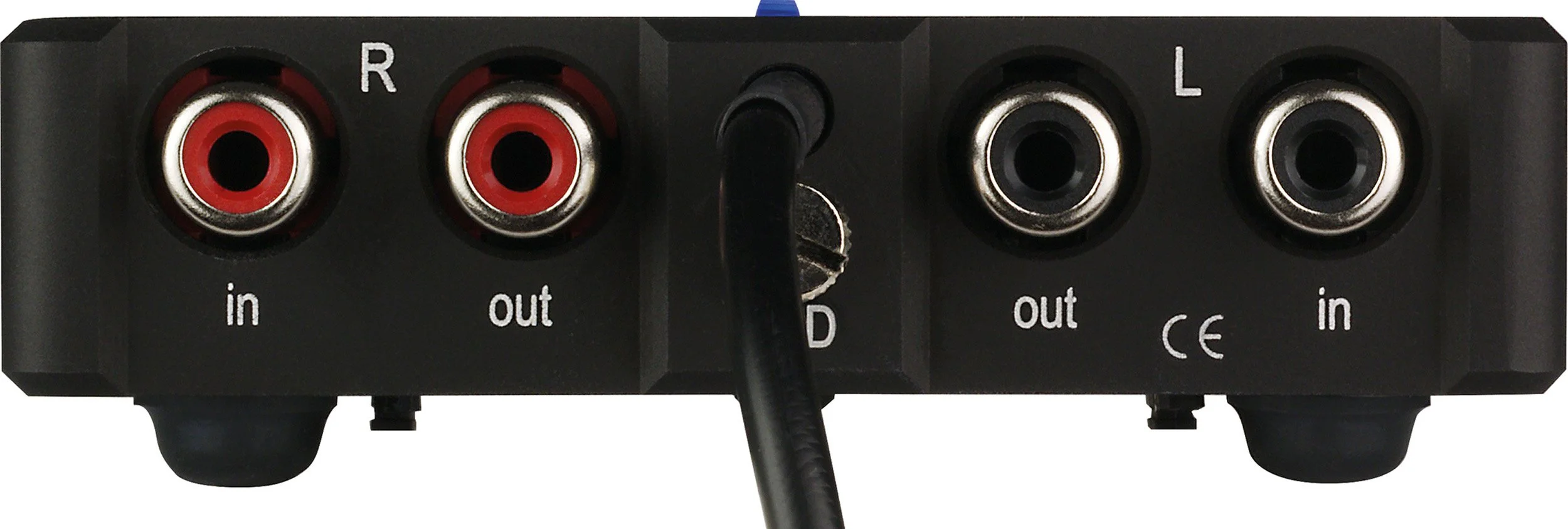

Inputs:
unbalanced (RCA)
Outputs:
unbalanced (RCA)
optional headphone output (Jack: 3.5mm)
Power consumption:
Max. consumption: 2.3 Watt
In operation: 2.3 Watt
Standby mode: < 0.3 Watt
Off mode: 0.0 Watt
Power supply:
±18V DC / 300mA
(external power supply)
Total weight:
Approx. 500g (Preamp and power supply)
Dimensions (W/D/H):
Approx. 85 × 106 × 25mm
FINISHES:
Silver, Black
warranty:
3 Years
